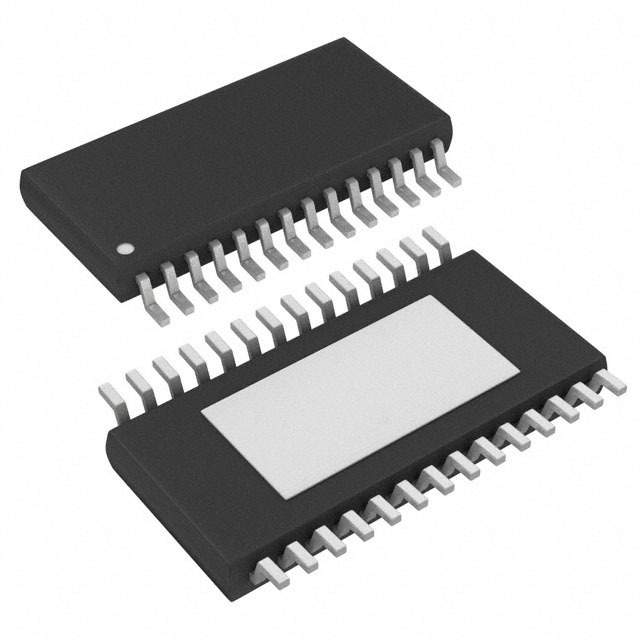

LINEAR TECHNOLOGY LTC3634EFE#PBF 芯片, 降压稳压器, 双路, 15V, 3A, 0.6V 至 3V, 28TSSOP
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 3 A. Use this part at voltages between 3.6 V and 15 V. With an adjustable output that has a voltage of 0.6 to 3 V, this is power management at its best. This converter is 95 % efficient. Its switching regulator has a frequency of 1400 to 4600 kHz. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 2
输出电压 0.6V ~ 3V
输出电流 4.4 A
针脚数 28
开关频率 4.6 MHz
输入电压Max 15 V
输入电压Min 1.4 V
输出电流Max 3 a
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 1.4V ~ 15V
安装方式 Surface Mount
引脚数 28
封装 TSSOP-28
封装 TSSOP-28
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 转换器，DDR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3634EFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3634EFE#TRPBF 凌力尔特 | 完全替代 | LTC3634EFE#PBF和LTC3634EFE#TRPBF的区别 |
LTC3634HFE#PBF 凌力尔特 | 类似代替 | LTC3634EFE#PBF和LTC3634HFE#PBF的区别 |
LTC3634MPFE#PBF 凌力尔特 | 类似代替 | LTC3634EFE#PBF和LTC3634MPFE#PBF的区别 |
