Conv DC-DC 2.625V to 5.5V Synchronous Step Down Single-Out 0.8V to 5V 2.5A 16Pin TSSOP EP Tube
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 2.5 A. Use this part at voltages between 2.625 V and 5.5 V. With an adjustable output that has a voltage of 0.8 to 5 V, this is power management at its best. This converter is 95 % efficient. At a load regulation of 0.2% and line regulation of 0.2%/V your circuit is capable of maintaining a constant voltage level at your output. Its switching regulator has a frequency of 300 to 4000 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 2.5 A
开关频率 950 kHz
输入电压Max 5.5 V
输入电压Min 2.625 V
输出电压Max 5 V
输出电压Min 0.8 V
输出电流Max 2.5 a
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.625 V
输入电压 2.625 V
安装方式 Surface Mount
引脚数 16

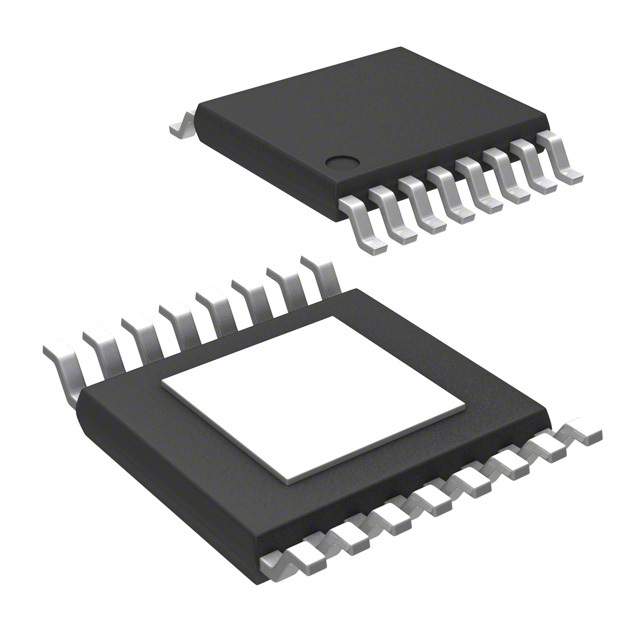

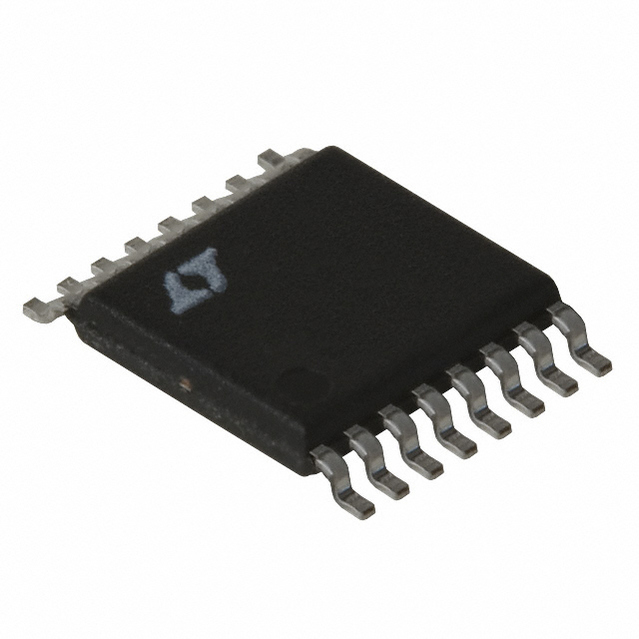

封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3412IFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3412IFE#TRPBF 凌力尔特 | 类似代替 | LTC3412IFE#PBF和LTC3412IFE#TRPBF的区别 |
