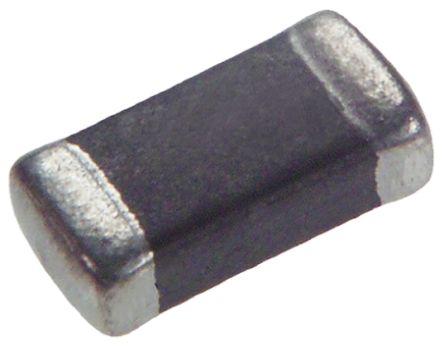

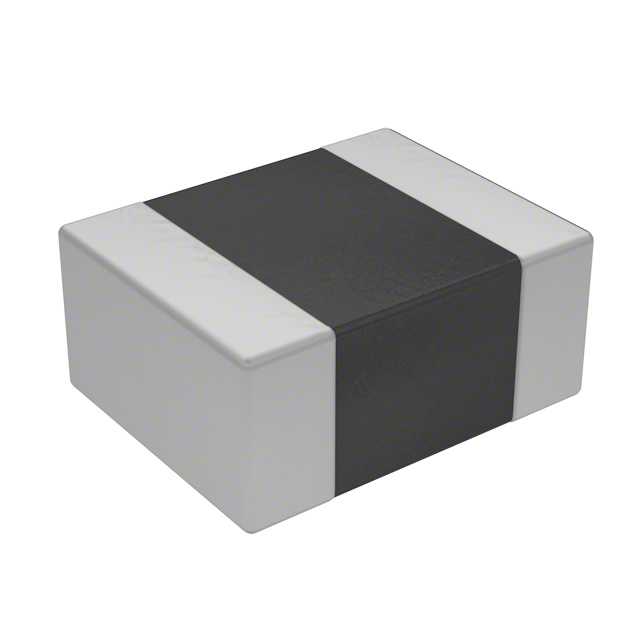

MURATA LQM2MPN2R2NG0L 表面贴装高频电感器, LQM2MPN系列, 2.2 µH, ± 30%, 0806 [2016 公制], 40 MHz, 0.138 ohm
固定器
得捷:
FIXED IND 2.2UH 1.2A 138MOHM SMD
立创商城:
2.2uH ±30% 138mΩ
欧时:
Murata LQW2MP_G0 系列 LQM2MPN2R2NG0L 2.2 μH ±30% 铁氧体 多层贴片式电感器, 0806 2016M封装, SRF: 40MHz
e络盟:
高频电感器, 2.2 µH, LQM2MPN系列, 0806 [2016 公制], 多层, 0.138 ohm
艾睿:
This power chip LQM2MPN2R2NG0L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes multi-layer technology. It has an inductance of 2.2u H. This product is 2.15 mm long, 1 mm tall and 1.75 mm deep. This SMD inductor has a maximum DC current of 1.2 A with a maximum resistance of 138m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 40M Hz.
Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 2.2uH 30% 1MHz Ferrite 1.2A 138mOhm DCR 0806 Embossed T/R
Verical:
Inductor Power Chip Shielded Multi-Layer 2.2uH 30% 1MHz Ferrite 1.2A 0.138Ohm DCR 0806 T/R
Newark:
Surface Mount High Frequency Inductor, LQM2MPN Series, 2.2 H, 30%, 0806 [2016 Metric], 40 MHz
儒卓力:
**LQM2MPN 2,2uH 1200mA 25% MLT **
Win Source:
2.2μH Shielded Multilayer Inductor 1.2A 138 mOhm Max 0806 2016 Metric
额定电流 1.2 A
容差 ±25 %
电感 2.2 µH
自谐频率 40 MHz
产品系列 LQM
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤138 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±30 %
电阻DC Max 0.138 Ω
安装方式 Surface Mount
封装 0806
长度 2 mm
宽度 1.6 mm
高度 0.9 mm
封装 0806
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 Power Management, Industrial, 工业, Power Management, Industrial, 电源管理
RoHS标准 RoHS Compliant
含铅标准 PB free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
