LINEAR TECHNOLOGY LT1172HVCQ#PBF 直流-直流开关升压, 反激, 反相稳压器, 可调, 3V-60V输入, 1.25A输出 100kHz, TO-263-5
The is a monolithic high-power Switching Regulator for use with battery upconverter. It can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting and Cuk. A high current, high efficiency switch is included on the die along with all oscillator, control and protection circuitry. This makes them extremely easy to use and provides bust-proof operation similar to that obtained with 3-pin linear regulators. It operates with supply voltages from 3 to 60V and draw only 6mA quiescent current. It can deliver load power up to 100W with no external power devices. By utilizing current-mode switching techniques, it provides excellent AC and DC load and line regulation. It has many unique features not found even on the vastly more difficult to use low power control chips presently available. It uses adaptive anti-sat switch drive to allow very wide ranging load currents with no loss in efficiency.
电源电压DC 60.0V max
输出接口数 1
输出电压 1.25V ~ 60V
输出电流 1.25 A

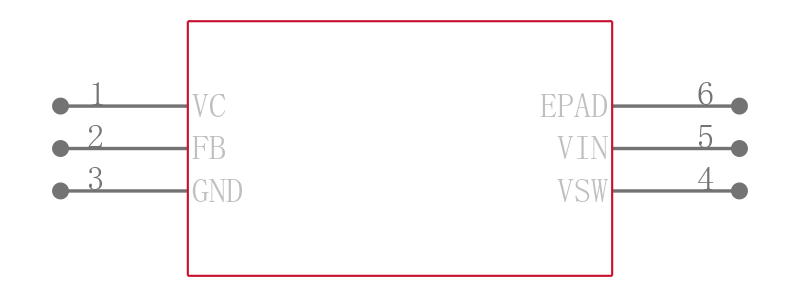

针脚数 5
静态电流 50.0 µA
开关频率 100 kHz
输入电压Max 60 V
输入电压Min 3 V
输出电压Max 60 V
输出电压Min 1.244 V
输出电流Max 3.5 A
输出功率Max 100 W
工作温度Max 100 ℃
工作温度Min 0 ℃
电源电压 3 V
输入电压 3V ~ 60V
安装方式 Surface Mount
引脚数 5

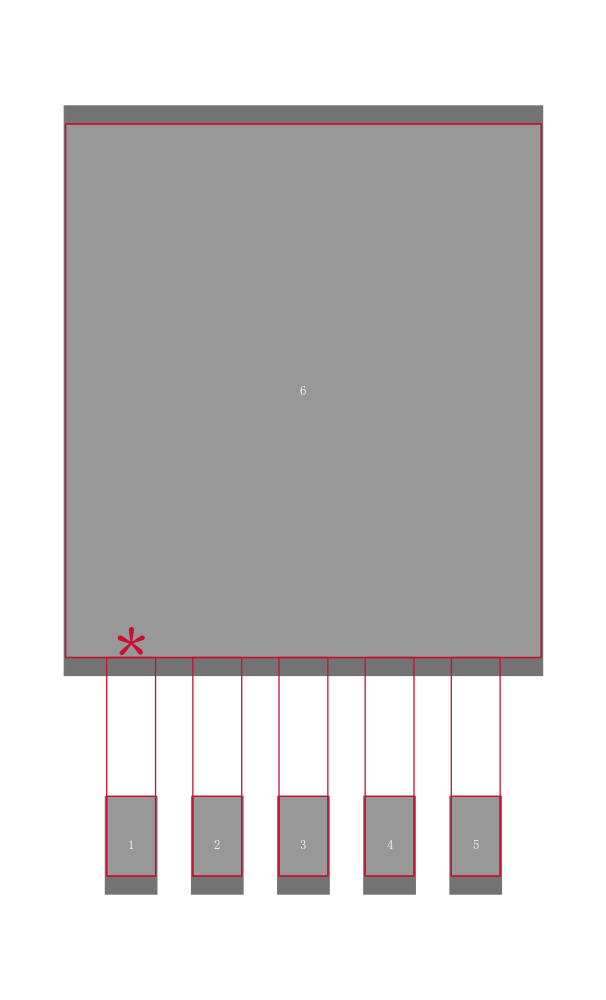

封装 TO-263-6
封装 TO-263-6
工作温度 0℃ ~ 100℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, 电源管理
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1172HVCQ#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1172HVCQ#TRPBF 凌力尔特 | 完全替代 | LT1172HVCQ#PBF和LT1172HVCQ#TRPBF的区别 |
LT1172HVCQ 凌力尔特 | 完全替代 | LT1172HVCQ#PBF和LT1172HVCQ的区别 |
LT1172HVIQ 凌力尔特 | 完全替代 | LT1172HVCQ#PBF和LT1172HVIQ的区别 |
