Conv DC-DC 4V to 15V Synchronous Step Down Single-Out 4.5A 8Pin SOIC N Tube
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 4.5 A. This will operate at a minimum voltage of 4 V and a maximum voltage of 15 V, making it easy to control the power in your circuit. With an adjustable output, this is power management at its best. A line regulation of 0.03%/V is necessary for providing a constant voltage level at your output. Its switching regulator has a frequency of 540 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
频率 500 kHz
输出接口数 1
输出电压 ≥2.42 V
输出电流 4.5 A
开关频率 500 kHz
拓扑结构 Buck, Boost
输入电压Max 15 V
输入电压Min 4 V
输出电压Max 13.95 V
输出电压Min 2.42 V
输出电流Max 4.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4 V
输入电压 4 V
安装方式 Surface Mount
引脚数 8

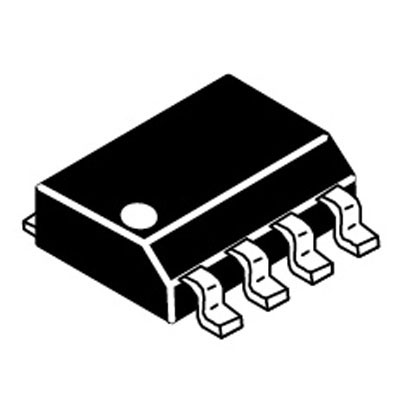

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1506IS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1506IS8#TRPBF 凌力尔特 | 完全替代 | LT1506IS8#PBF和LT1506IS8#TRPBF的区别 |
LT1506CS8#TRPBF 凌力尔特 | 完全替代 | LT1506IS8#PBF和LT1506CS8#TRPBF的区别 |
LT1506CS8#PBF 凌力尔特 | 类似代替 | LT1506IS8#PBF和LT1506CS8#PBF的区别 |
