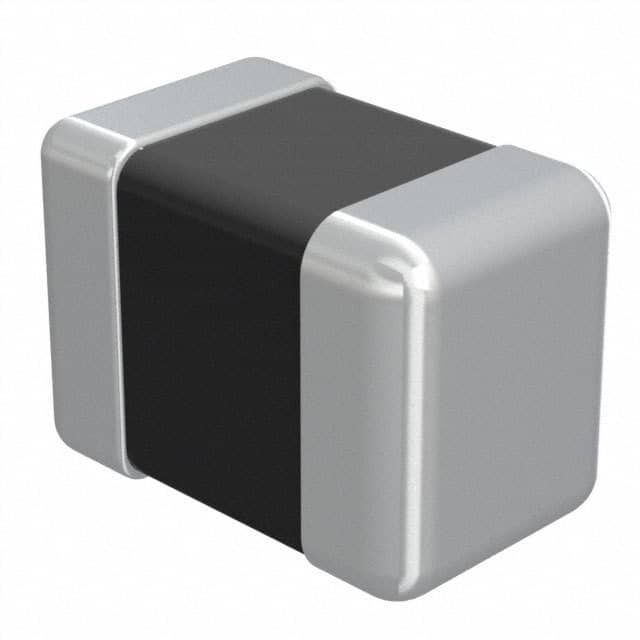

固定电感器 0805 47uH 7540mOhms +/-20%Tol 90mA
无屏蔽 绕线 器 5.8 欧姆 0805(2012 公制)
得捷:
FIXED IND 47UH 90MA 5.8 OHM SMD
立创商城:
47uH ±20% 90mA
贸泽:
固定电感器 0805 47uH 7540mOhms +/-20%Tol 90mA
艾睿:
Inductor General Purpose Chip Wirewound 47uH 20% 2.52MHz Ferrite 0.09A 7.54Ohm DCR 0805 T/R
Chip1Stop:
Inductor Chip Wirewound 47uH 20% 2.52MHz Ferrite 90mA 7.54Ohm DCR 0805 T/R
Verical:
Inductor General Purpose Chip Wirewound 47uH 20% 2.52MHz Ferrite 0.09A 7.54Ohm DCR 0805 T/R
Win Source:
47μH Unshielded Wirewound Inductor 90mA 5.8 Ohm 0805 2012 Metric
额定电流 90 mA
容差 ±20 %
无卤素状态 Halogen Free
电感 47 µH
自谐频率 11 MHz
产品系列 LB
屏蔽 No
电感公差 ±20 %
测试频率 2.52 MHz
电阻DC) ≤7.54 Ω
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 1.7 Ω
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805

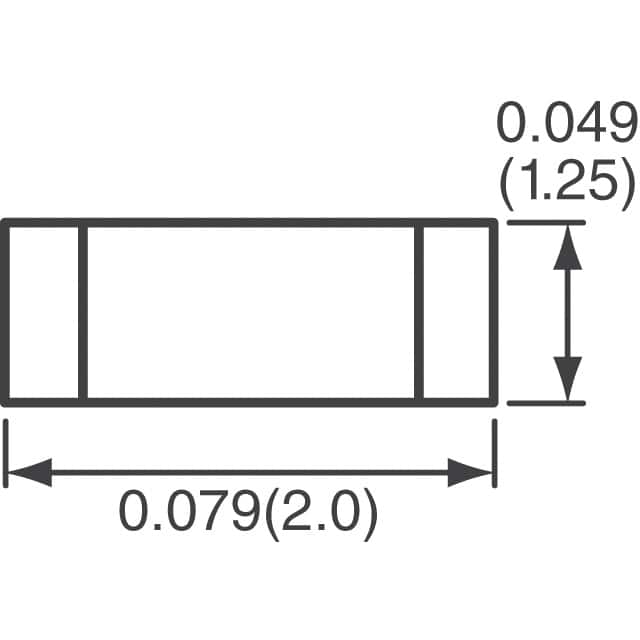

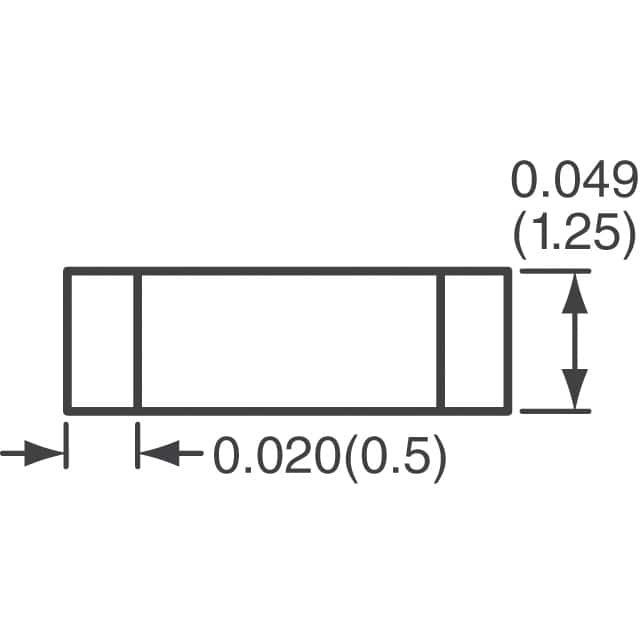

长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LBC2012T470M Taiyo Yuden 太诱 | 当前型号 | 当前型号 |
L0805C470MPWIT 基美 | 功能相似 | LBC2012T470M和L0805C470MPWIT的区别 |
