LINEAR TECHNOLOGY LTC3859EFE#PBF 直流/直流控制器, 4.5V至38V, 3路输出, 同步降压/ 降压-升压, 585kHz, TSSOP-38
With the synchronous boost/buck DC voltage controller from you can step up or down the DC voltage in your application. This DC voltage controller has 3 outputs. Its output produces a current of 25|25 A. With an output that has a voltage of 0.8 to 24|0.8 to 60 V, this is power management at its best. This DC voltage controller has an input voltage of 4.5 to 38 V. This part offers a switching frequency of 50 to 900 kHz in order to work properly. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 4.50V min
输出接口数 3
输出电压 0.8.24 V
输出电流 25 A
针脚数 38
开关频率 585 kHz
占空比 100 %
输入电压Max 38 V
输入电压Min 4.5 V
最大占空比 99 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 38V
电源电压Max 38 V
电源电压Min 4.5 V
输入电压 4.5V ~ 38V
安装方式 Surface Mount
引脚数 38

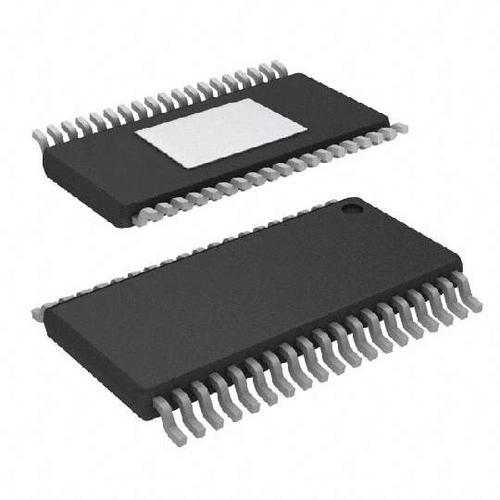

封装 TSSOP-38
封装 TSSOP-38
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3859EFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3859EFE#TRPBF 凌力尔特 | 类似代替 | LTC3859EFE#PBF和LTC3859EFE#TRPBF的区别 |
