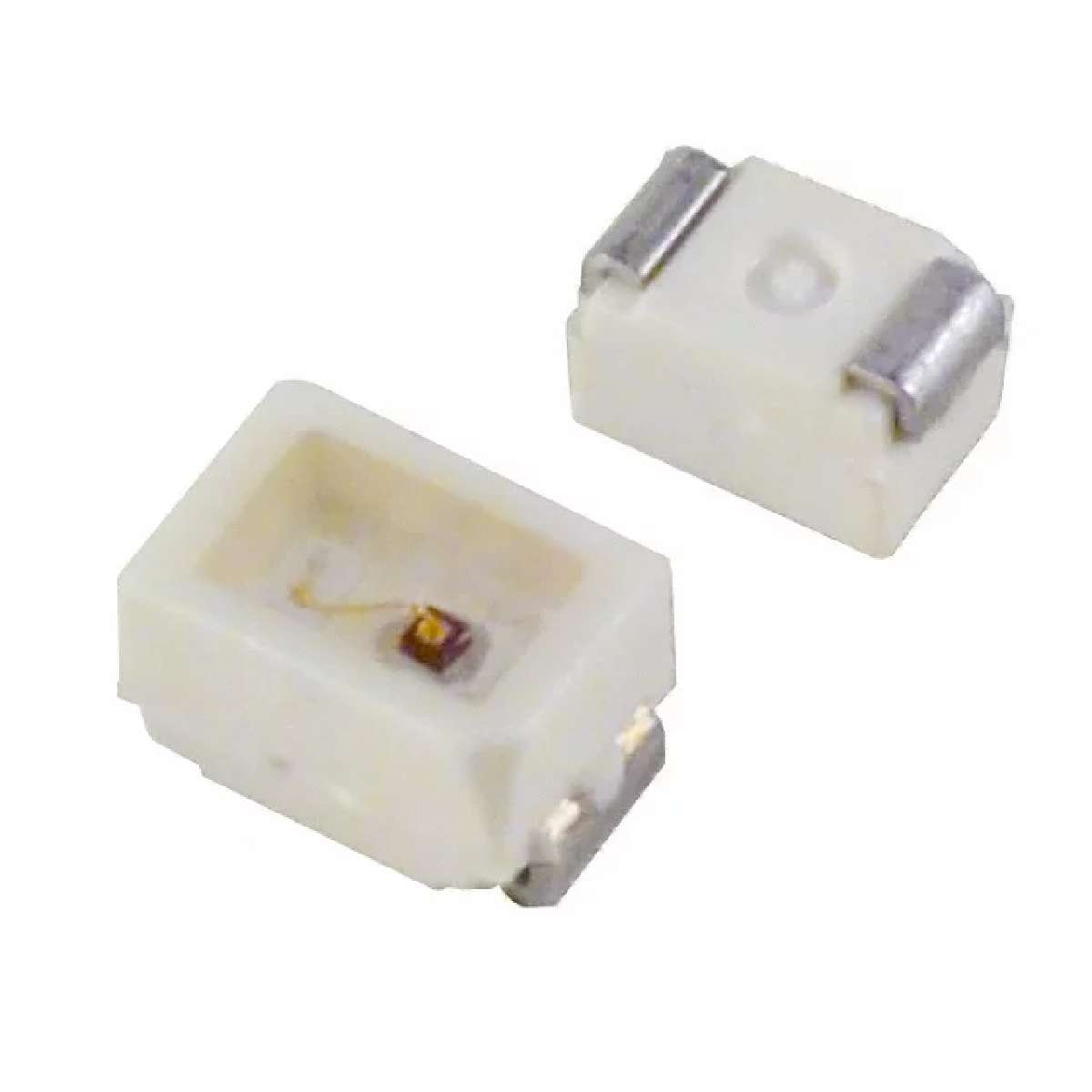

标准LED-SMD Yellow 587nm
黄色 587nm 指示 - 分立 1.8V 2-SMD,J 形引线
得捷:
LED YELLOW CLEAR SMD
贸泽:
标准LED-SMD Yellow 587nm
艾睿:
LED Uni-Color Yellow 591nm Automotive 2-Pin SMD T/R
安富利:
LED Uni-Color Yellow 591nm 2-Pin SMT T/R
Verical:
LED Uni-Color Yellow 591nm Automotive 2-Pin SMD T/R
正向电压 1.8 V
波长 587 nm
发光强度 18 mcd
视角 120°
峰值波长 591 nm
测试电流 2 mA
正向电流 20 mA
正向电压Max 2.2 V
正向电流Max 20 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 2.1 mm
宽度 1.5 mm
高度 1.40 mm
封装 SMD-2
颜色 Yellow
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
