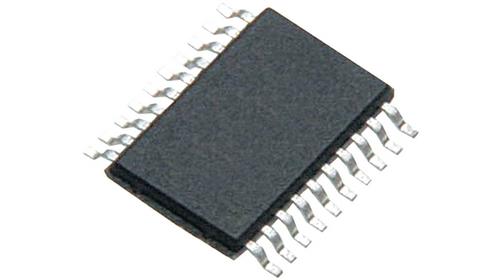

LTC3112IFE#PBF

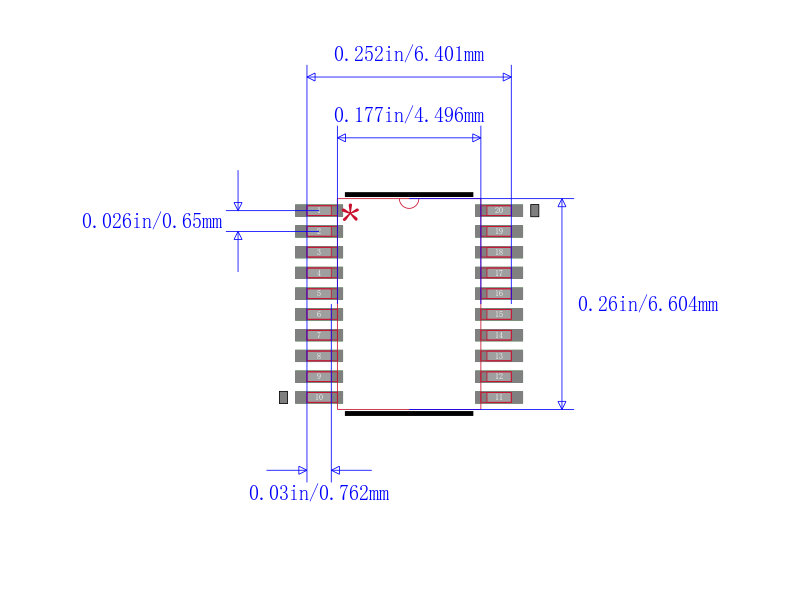

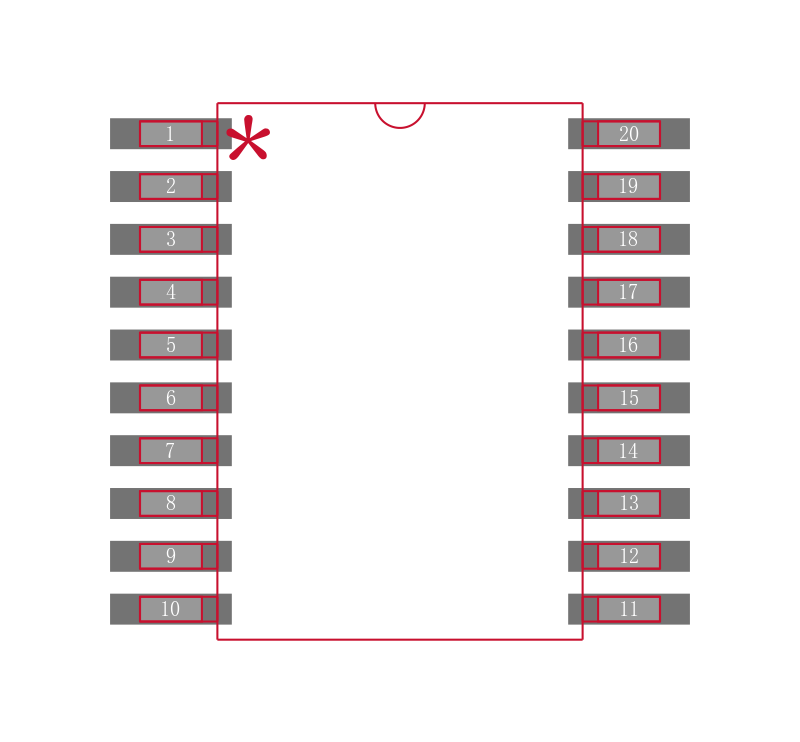

LINEAR TECHNOLOGY  LTC3112IFE#PBF  直流-直流开关降压-升压稳压器, 可调, 2.7V-15V输入, 2.5V-14V输出, 2.5A输出, TSSOP-20

The is a fixed frequency synchronous buck-boost DC-to-DC Converter with an extended input and output range. The unique 4-switch, single inductor architecture provides low noise and seamless operation from input voltages above, below or equal to the output voltage. With an input range of 2.7 to 15V, the LTC3112 is well suited for a wide variety of single or multiple cell battery, backup capacitor or wall adapter source applications. Low RDSON internal N-channel MOSFET switches provide highly efficient operation in applications with higher load current requirements. The LTC3112 features selectable PWM or Burst Mode® operation, an easily synchronized oscillator and output disconnect in shutdown. An output current monitor circuit allows the load current to be controlled or measured. Other features include <1µA shutdown current, short-circuit protection, soft-start, current limit and thermal shutdown.

.

Output current monitor

.

Internal N-channel MOSFETs

.

Overvoltage protection

.

Output disconnect in shutdown

.

Internal soft-start

.

Up to 95% efficiency

.

Synchronizable between 300kHz and 1.5MHz

.

50µA Quiescent current
