LY A67B-T1V1-26-Z

LY A67B-T1V1-26-Z图片1
LY A67B-T1V1-26-Z图片2
LY A67B-T1V1-26-Z图片3
LY A67B-T1V1-26-Z图片4
LY A67B-T1V1-26-Z图片5
LY A67B-T1V1-26-Z图片6
LY A67B-T1V1-26-Z图片7
LY A67B-T1V1-26-Z图片8
LY A67B-T1V1-26-Z概述

LED Uni-Color Yellow 594nm 2Pin SMD T/R

黄色 587nm 指示 - 分立 2.1V 2-SMD,Boomerang


得捷:
LED YELLOW CLEAR SMD R/A


贸泽:
Standard LEDs - SMD Yellow, 587nm 590mcd, 30mA


艾睿:
LED Uni-Color Yellow 594nm 2-Pin SMD T/R


安富利:
LED Uni-Color Yellow 594nm 2-Pin SMD T/R


LY A67B-T1V1-26-Z中文资料参数规格
技术参数

正向电压 2.1 V

波长 587 nm

视角 120°

峰值波长 594 nm

测试电流 30 mA

正向电流 40 mA

正向电流Max 40 mA

工作温度Max 100 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 SMD-2

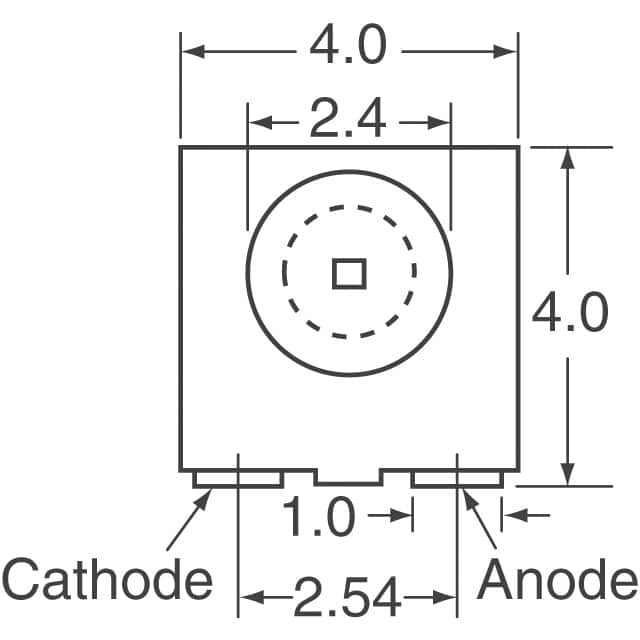

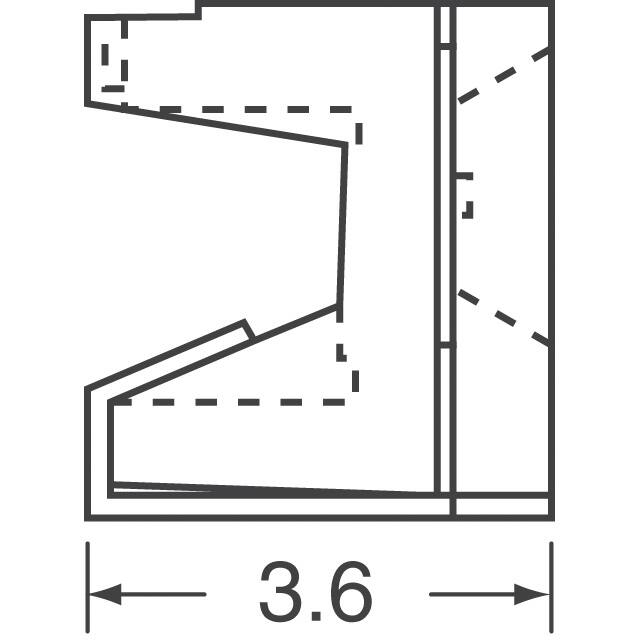

外形尺寸

长度 4.2 mm

宽度 4.2 mm

高度 4.2 mm

封装 SMD-2

物理参数

颜色 Yellow

工作温度 -40℃ ~ 100℃

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买LY A67B-T1V1-26-Z
型号: LY A67B-T1V1-26-Z
描述:LED Uni-Color Yellow 594nm 2Pin SMD T/R
