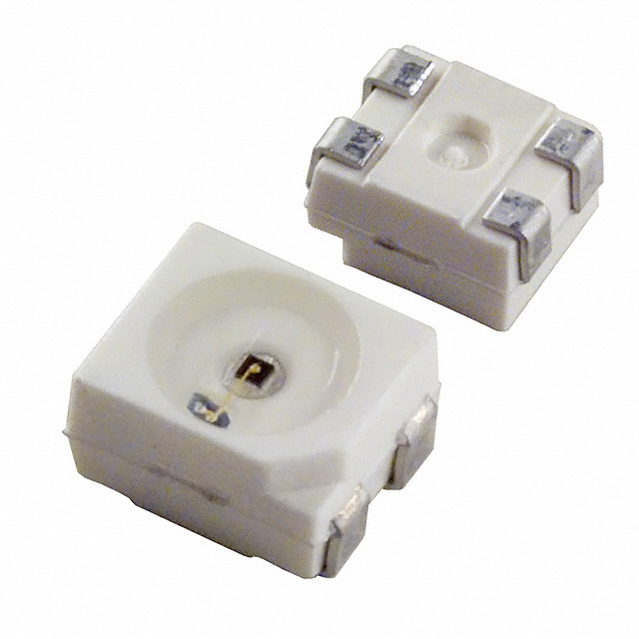

LED Uni-Color Blue 464nm 4Pin PLCC T/R
Blue 470nm Indication - Discrete 3.4V 4-PLCC
贸泽: Standard LEDs - SMD Blue 469nm
艾睿: LED Uni-Color Blue 464nm Automotive 4-Pin PLCC T/R
Verical: LED Uni-Color Blue 464nm Automotive 4-Pin PLCC T/R
正向电压 3.4 V
波长 469 nm
发光强度 710 mcd
视角 120°
峰值波长 464 nm
测试电流 30 mA
正向电流 50 mA
正向电压Max 3.8 V
正向电流Max 50 mA
工作温度Max 110 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 PLCC-4
长度 3.4 mm
宽度 3 mm
高度 2.10 mm
颜色 Blue
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
