开关稳压器 Portable Processor PMIC
brings you their latest shunt voltage regulator, a device that has the ability to properly maintain a constant voltage level within your circuit. This variable voltage regulator has 8 outputs. This variable voltage regulator has an input voltage of 2.7 to 5.5 V. You can operate this at a switching frequency of 2250Typ kHz. This variable voltage regulator has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 5.50 V
输出接口数 8
输出电压 0.75.5 V
输出电流 2.7 A
供电电流 8 µA
耗散功率 1180 mW
调节输出数 8
开关频率 2.25 MHz
输入电压Max 5.5 V
输入电压Min 2.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1180 mW
电源电压 2.7V ~ 5.5V
输入电压 2.7.5.5 V
安装方式 Surface Mount

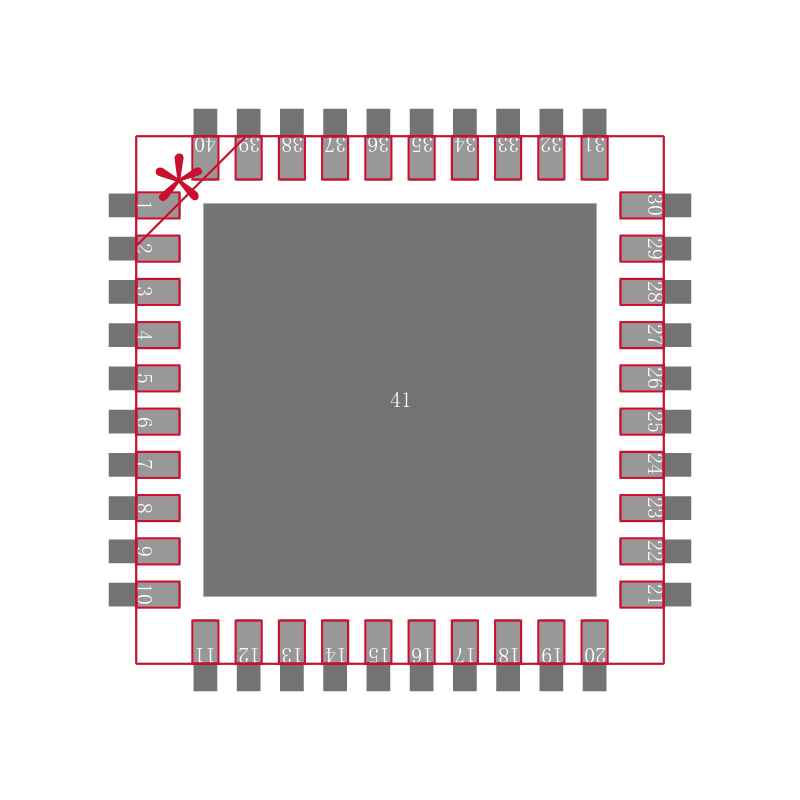

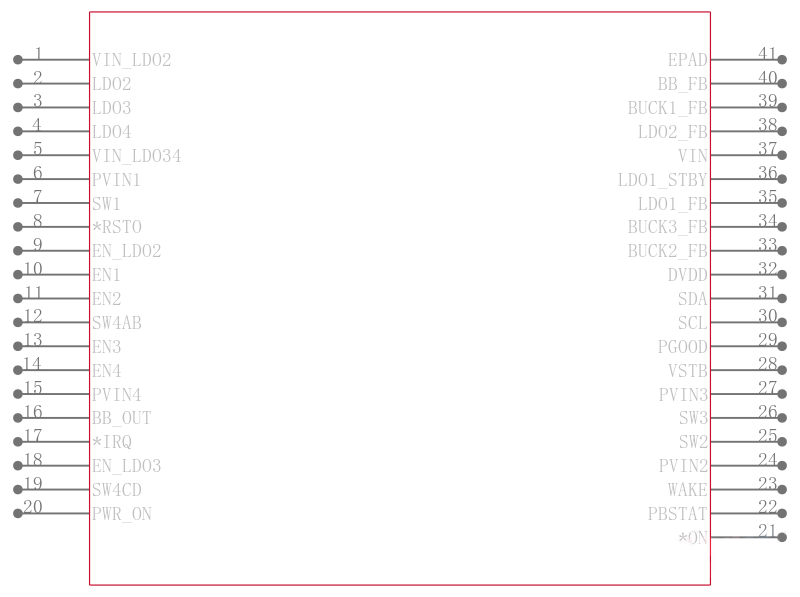

引脚数 40

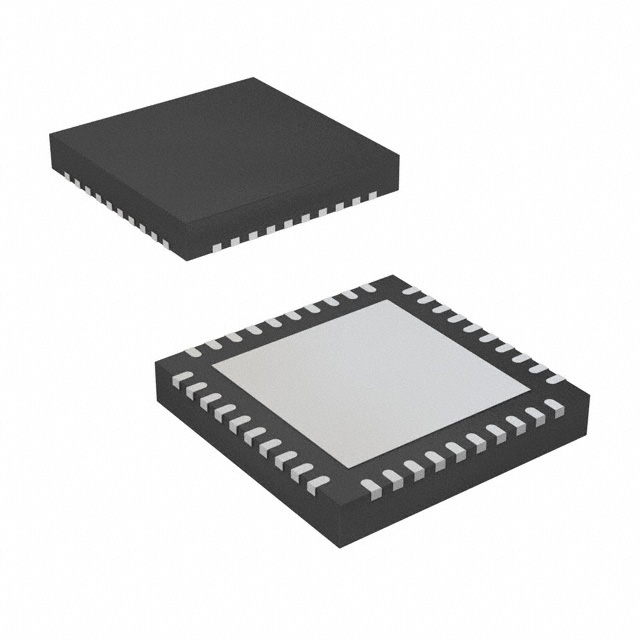

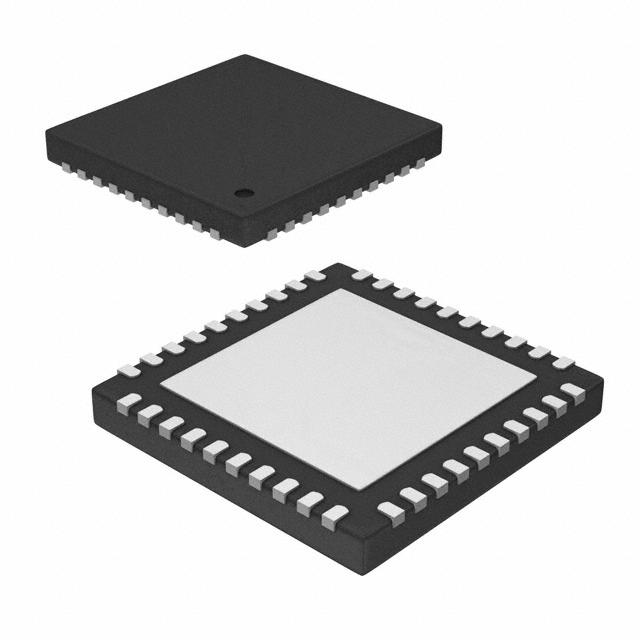

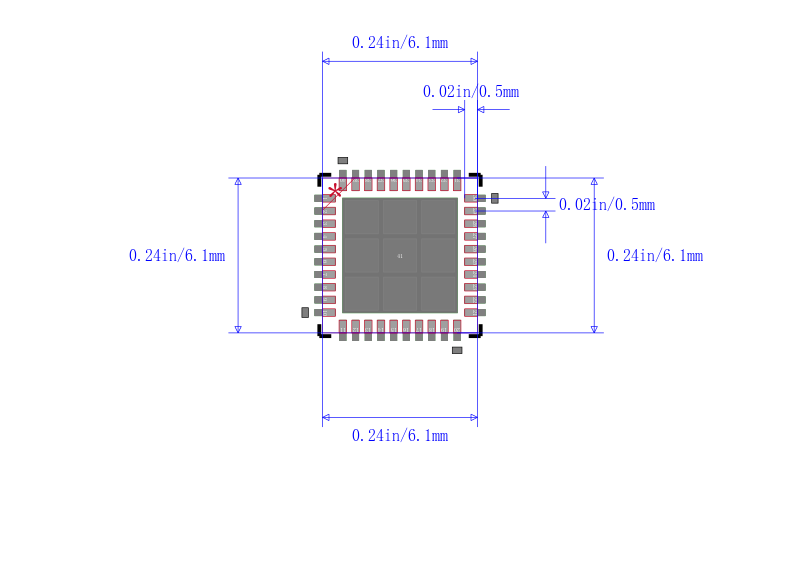

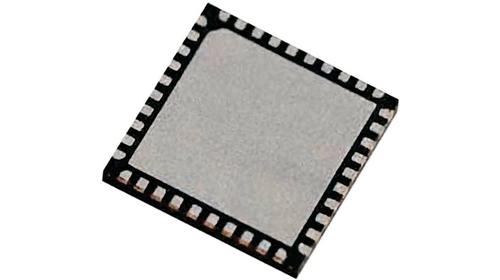

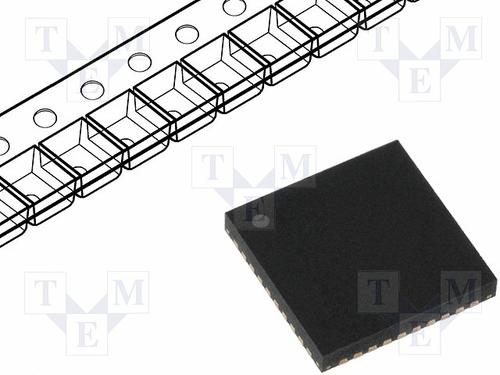

封装 QFN-40
封装 QFN-40
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 手持式/移动设备，OMAP™
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3589EUJ#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3589EUJ#TRPBF 凌力尔特 | 完全替代 | LTC3589EUJ#PBF和LTC3589EUJ#TRPBF的区别 |
