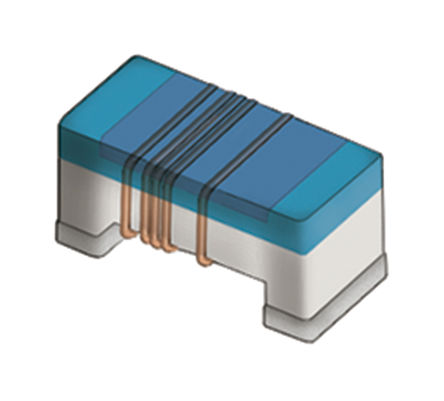

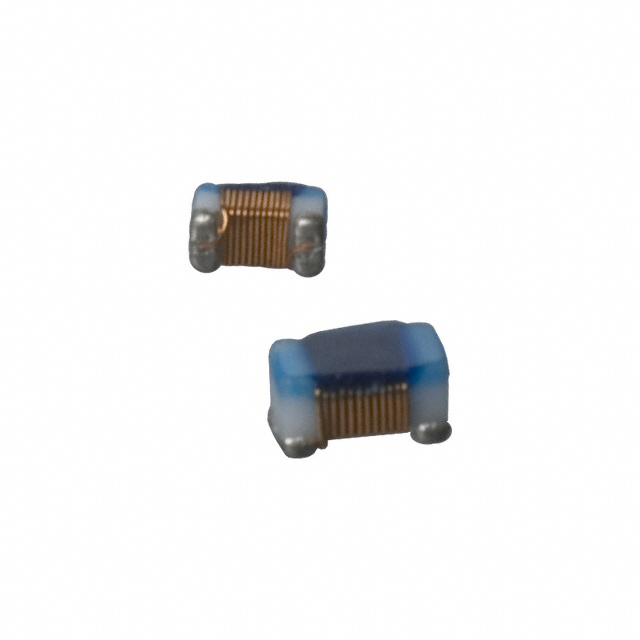

MURATA LQW15AN4N1C00D 表面贴装高频电感器, LQW15AN系列, 4.1 nH, ± 0.2nH, 0402 [1005 公制], 10 GHz, 0.07 ohm
Murata 0402 LQW15AN_00D 系列线绕器 0.0015μH - 0.0095μH
高质量线圈电感器,设计用于 VHF 和 UHF 应用。
高谐振频率。
低容差电感值。
应用:高频率电路,用于无线电信设备,例如蓝牙、GSM、W-LAN。
得捷:
FIXED IND 4.1NH 750MA 70MOHM SMD
立创商城:
4.1nH ±0.2nH 750mA 70mΩ
欧时:
### Murata 0402 LQW15AN_00D 系列线绕电感器 0.0015μH - 0.0095μH高质量线圈电感器,设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用:高频率电路,用于无线电信设备,例如蓝牙、GSM、W-LAN。 ![http://china.rs-online.com/largeimages/L0107833-10.jpg]http://china.rs-online.com/largeimages/L0107833-10.jpg ### 表面安装 0402 电感器(扼流圈)
贸泽:
Fixed Inductors 4.1nH 0.2nH 100MHz
e络盟:
MURATA LQW15AN4N1C00D 表面贴装高频电感器, LQW15AN系列, 4.1 nH, ± 0.2nH, 0402 [1005 公制], 10 GHz, 0.07 ohm
艾睿:
An ideal space-saving electronic component is this rf chip LQW15AN4N1C00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 10G Hz. It has an inductance of 4.1n H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 70m Ohm.
安富利:
Ind RF Chip Wirewound 4.1nH 0.2nH 100MHz 25Q-Factor 750mA 0402 Paper T/R
Chip1Stop:
Inductor RF Chip Unshielded Wirewound 4.1nH 0.2nH 100MHz 25Q-Factor Ceramic 750mA 70mOhm DCR 0402 T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.0041uH 0.2nH 100MHz 25Q-Factor Non Magnetic 0.75A 0.07Ohm DCR 0402 T/R
Newark:
# MURATA LQW15AN4N1C00D Surface Mount High Frequency Inductor, LQW15AN Series, 4.1 nH, 0.2nH, 0402 [1005 Metric], 10 GHz
儒卓力:
**LQW15A 0,0041µH 750mA 0,2nH WWT **
额定电流 750 mA
电感 4.1 nH
自谐频率 10 GHz
产品系列 LQW
电感公差 ±0.2 nH
测试频率 100 MHz
电阻DC) ≤70 mΩ
额定电流DC 750 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.07 Ω
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.6 mm
高度 0.5 mm
封装公制 1005
封装 0402
重量 0.0008 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
