KINGBRIGHT L-934LID 发光二极管, 低功率, 红色, 通孔安装, T-1 3mm, 20 mA, 2 V, 625 nm

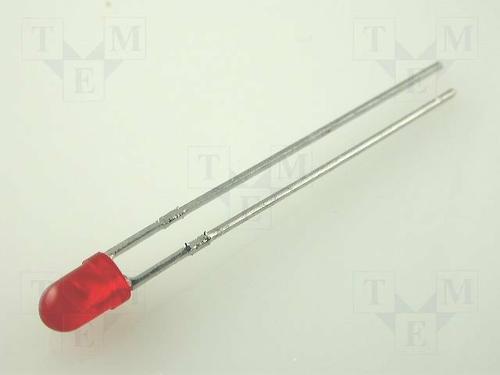

The from is a through hole round shape high efficiency red colour . The device is made of gallium arsenide phosphide on gallium phosphide orange light emitting diode. This LED is widely used because of low power consumption, long life and solid state reliability.
- .

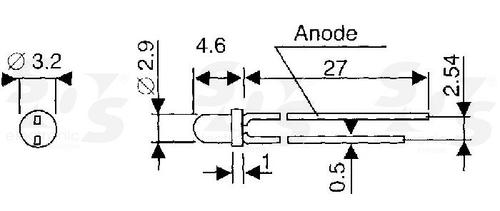

- Standard bulb size of T-1 3mm
- .
- Reliable and rugged
- .
- Viewing angle is 60°
- .
- Luminous intensity of 3mcd at 2mA
- .
- Forward voltage is 2.0V
- .
- Forward current If is 20mA
- .
- Dominant wavelength is 625nm at IF=20mA
- .
- Peak wavelength is 627nm at IF=20mA
- .
- Red diffused lens type
工作电压 1.75V ~ 2.5V
正向电压 2 V
波长 625 nm
发光强度 3 mcd
视角 60°
透镜样式 Diffused
峰值波长 627 nm
正向电流 20 mA
正向电压Max 2.5 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
安装方式 Through Hole
引脚数 2
封装 T-1
封装 T-1
颜色 Red
工作温度 -40℃ ~ 85℃
外观颜色 Red
产品生命周期 Active
包装方式 Each
制造应用 工业, 发光二极管照明, Industrial, LED Lighting, 便携式器材, Consumer Electronics, 消费电子产品, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
