LGY1E682MELA25

6.8mF ±20% 25V Φ25mm 25mm

6800µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C

立创商城:
6800uF ±20% 25V

得捷:
CAP ALUM 6800UF 20% 25V SNAP

艾睿:

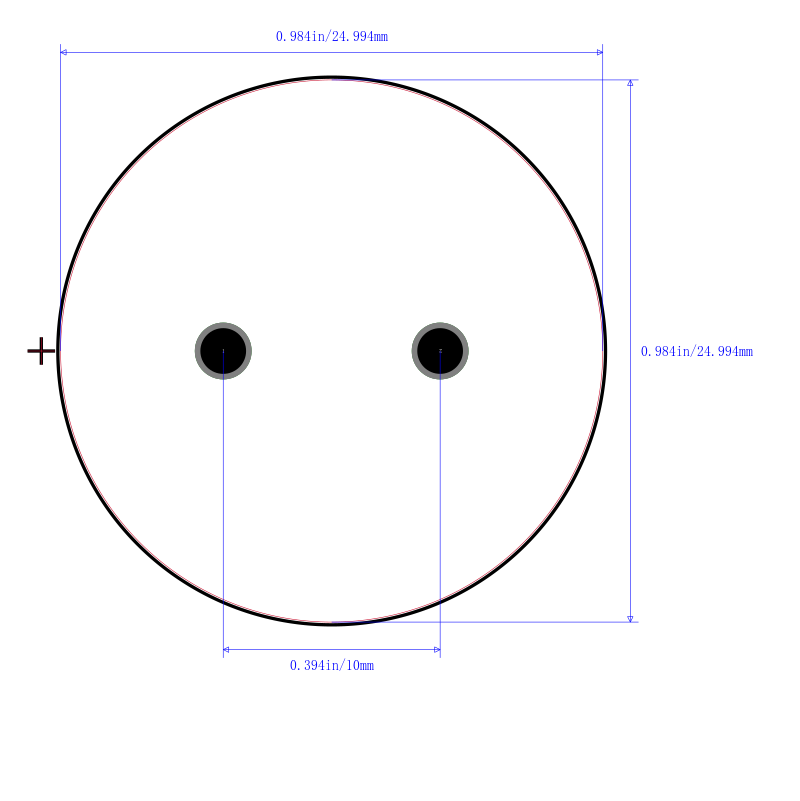

Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic LGY1E682MELA25 aluminum capacitor from Nichicon for its relatively high ESR! It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. This product is 25 mm tall with a diameter of 25 mm. Its capacitance value is 6800uF. Its leakage current is 1230@5Min μA. The LGY1E682MELA25 aluminum electrolytic capacitor has a snap-in termination style.

安富利:
Cap Aluminum 6800uF 25V 20% 25 X 25mm 10mm 1900mA 5000 hr 105°C Bulk
