LGX2W271MELB40

270uF ±20% 450V Φ30mm 40mm

270µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C

立创商城:
270uF ±20% 450V

得捷:
CAP ALUM 270UF 20% 450V SNAP

艾睿:

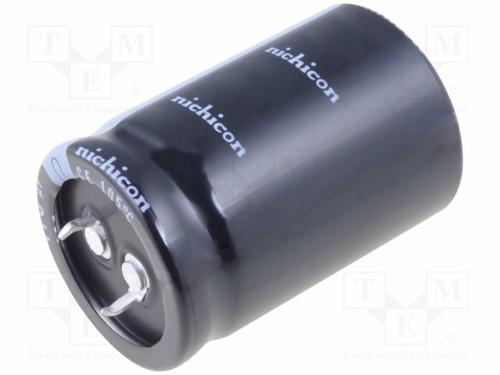

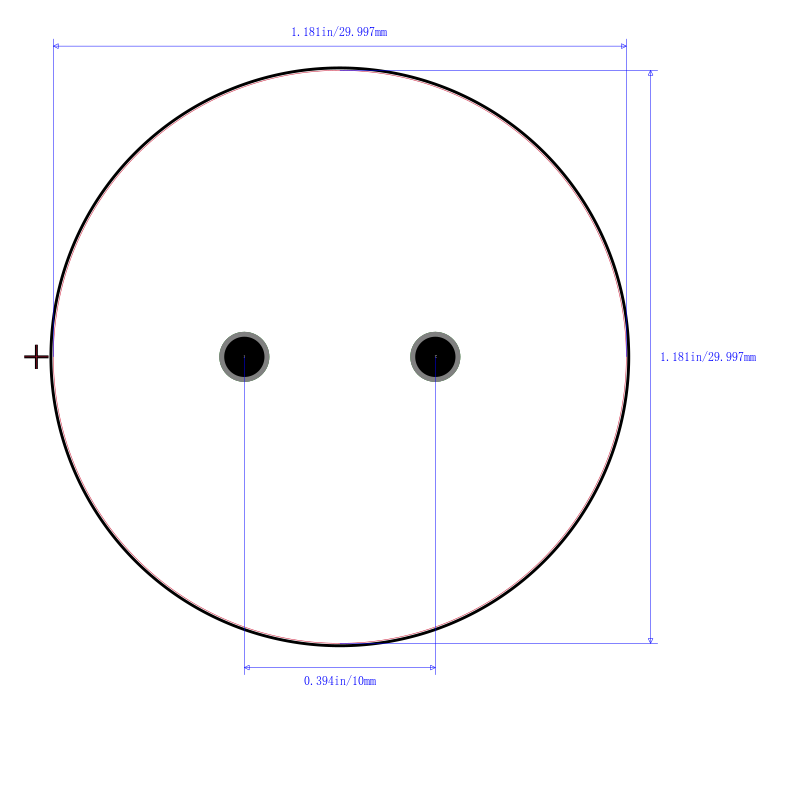

By implementing this electrolytic LGX2W271MELB40 aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 270uF. Its leakage current is 1040@5Min μA. The LGX2W271MELB40 aluminum electrolytic capacitor has a snap-in termination style. This product is 40 mm tall with a diameter of 30 mm. This part has a lead diameter of 0.8 mm and a pitch of 10 mm.

Chip1Stop:
Cap Aluminum Lytic 270uF 450V 20% 30 X 40mm Snap-In 10mm 1330mA 5000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 270uF; 450VDC; Ø30x40mm; ±20%; 5000h
