22mF ±20% 50V Φ51mm 80mm
**Features:
**
* Capacitance Range: 220 to 1500000 μF
* Voltage Range: 10 to 500 VDC
* Tolerance: 20% at 120 Hz, 20°C
* Temperature Range: –40 to +105°C 10 to 100 VDC and –25 to +105°C 160 to 500 VDC
* Load Life of 5000 Hours 2000 Hours for 10 to 250 V, 500 V Application of Rated Ripple Current at +105°C
立创商城:
22000uF ±20% 50V
得捷:
CAP ALUM 22000UF 20% 50V SCREW
艾睿:

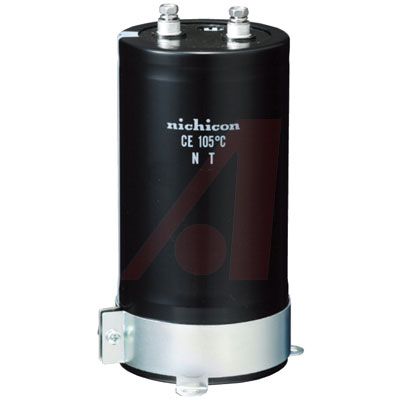

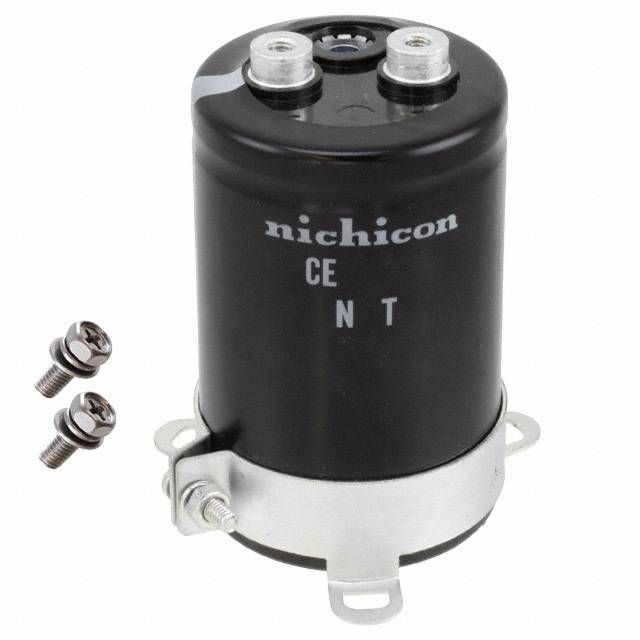

Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic LNT1H223MSE electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 80 mm tall with a diameter of 51 mm. Its capacitance value is 22000uF. The LNT1H223MSE aluminum electrolytic capacitor has a screw terminal termination style. Its leakage current is 3.14@5Min μA. It has a tolerance of 20%.
Allied Electronics:
22000uF 50 V dc Aluminium Electrolytic Capacitor; NT Series 2000h 51 x 80mm
Verical:
Cap Aluminum Lytic 22000uF 50V 20% 51 X 80mm Screw Terminal 6300mA 2000h 105C Bulk
