L-816BID

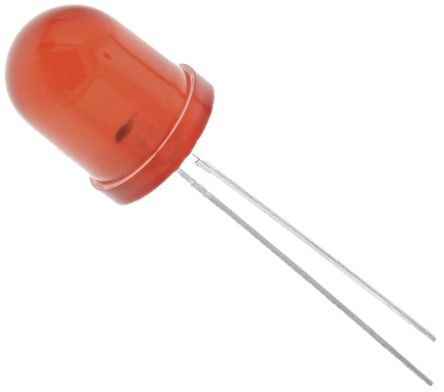

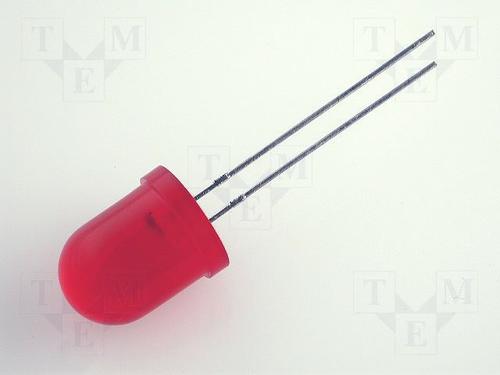

Kingbright Through Hole Blinking LED SeriesThis series of through hole blinking LED lamps, from Kingbright, are available in a variety of sizes and colours. The blinking LEDs have a built in blinking IC which produces a continuous flashing. With a circular lens shape, the LEDs have a rectangular base and a diffused lens. Kingbright"s blinking LEDs are suitable for applications such as warning devices and alarms. Colours available: red, green and yellow Sizes available: 3mm, 5mm, 8mm and 10mm Viewing angle: 40° or 60° ### 可见光 LED，Kingbright

通孔闪烁 系列

此系列的 Kingbright 通孔闪烁 LED 灯有各种尺寸和颜色可供选择。闪烁 LED 具有内置闪烁 IC，可产生连续闪光。LED 为圆形透镜形状，具有一个矩形基座和一个扩散式透镜。Kingbright 闪烁 LED 适用于警告设备和警报等应用。

可选颜色：红色、绿色和黄色

可选尺寸：3mm、5mm、8mm 和 10mm

视角：40° 或 60°

欧时:
Kingbright Blinking 系列 红色 闪光 LED L-816BID, 60 mcd, 60 °视角, 2 引脚 10 mm

e络盟:
闪光发光二极管, 10mm Red Blinking LED系列, 红色, T-3 1/4 10mm, 60 mcd, 1.5 Hz, 3 Hz

艾睿:
LED Uni-Color Red 625nm 2-Pin

Allied Electronics:
L-816BID, Blinking Series Red Flashing LED, 10 mm, Round Lens Through Hole package

Chip1Stop:
LED Uni-Color Red 625nm 2-Pin

TME:
LED; 10mm; red; 20-100mcd; 60°; 3.5÷14V; 22mA; Variant: blinking
