LP T67K-F1G2-25概述

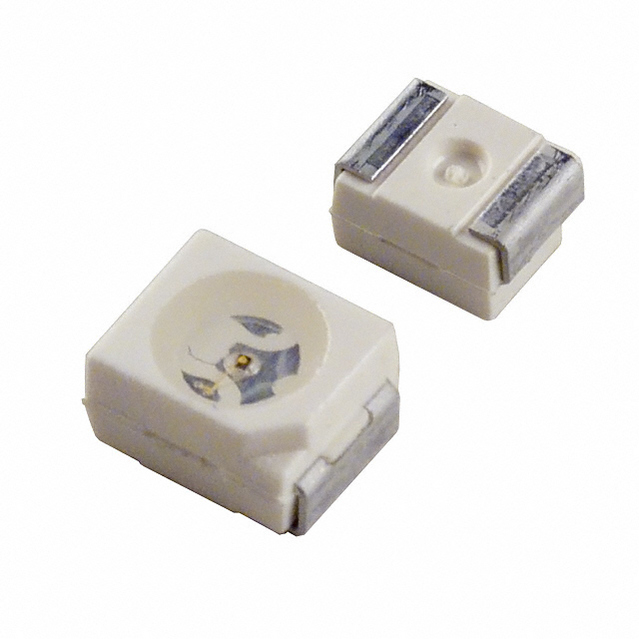

Osram Opto TOPLED 系列 PLCC 2 绿色 LED, 120 ° 贴装

**OSRAM TOP Series LEDs - Single Color**

The TOPLED series of LEDs, from Semiconductors, are compact and highly reliable LED devices. As Osram’s first SMT LED with an integrated reflector, the TOPLED family of LEDs are ideal for applications such as: indoor/outdoor displays, display backlighting, signal and symbol illumination. The TOPLEDs are also a suitable replacement for micro incandescent bulbs or floor marker lighting.

LP T67K-F1G2-25中文资料参数规格
技术参数

正向电压 1.8 V

波长 560 nm

视角 120°

峰值波长 562 nm

测试电流 2 mA

正向电压Max 2.2 V

正向电流Max 20 mA

工作温度Max 100 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 PLCC-2

外形尺寸

高度 2.10 mm

封装 PLCC-2

物理参数

颜色 Green

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买LP T67K-F1G2-25
型号: LP T67K-F1G2-25
描述:Osram Opto TOPLED 系列 PLCC 2 绿色 LED, 120 ° 贴装
替代型号LP T67K-F1G2-25
型号/品牌 代替类型 替代型号对比

LP T67K-F1G2-25

Osram Opto 欧司朗

当前型号

当前型号

LP T67K-F1G2-25-Z

欧司朗

完全替代

LP T67K-F1G2-25和LP T67K-F1G2-25-Z的区别
