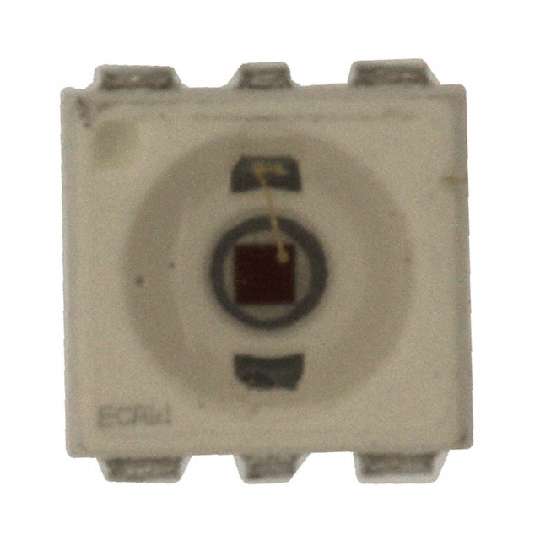

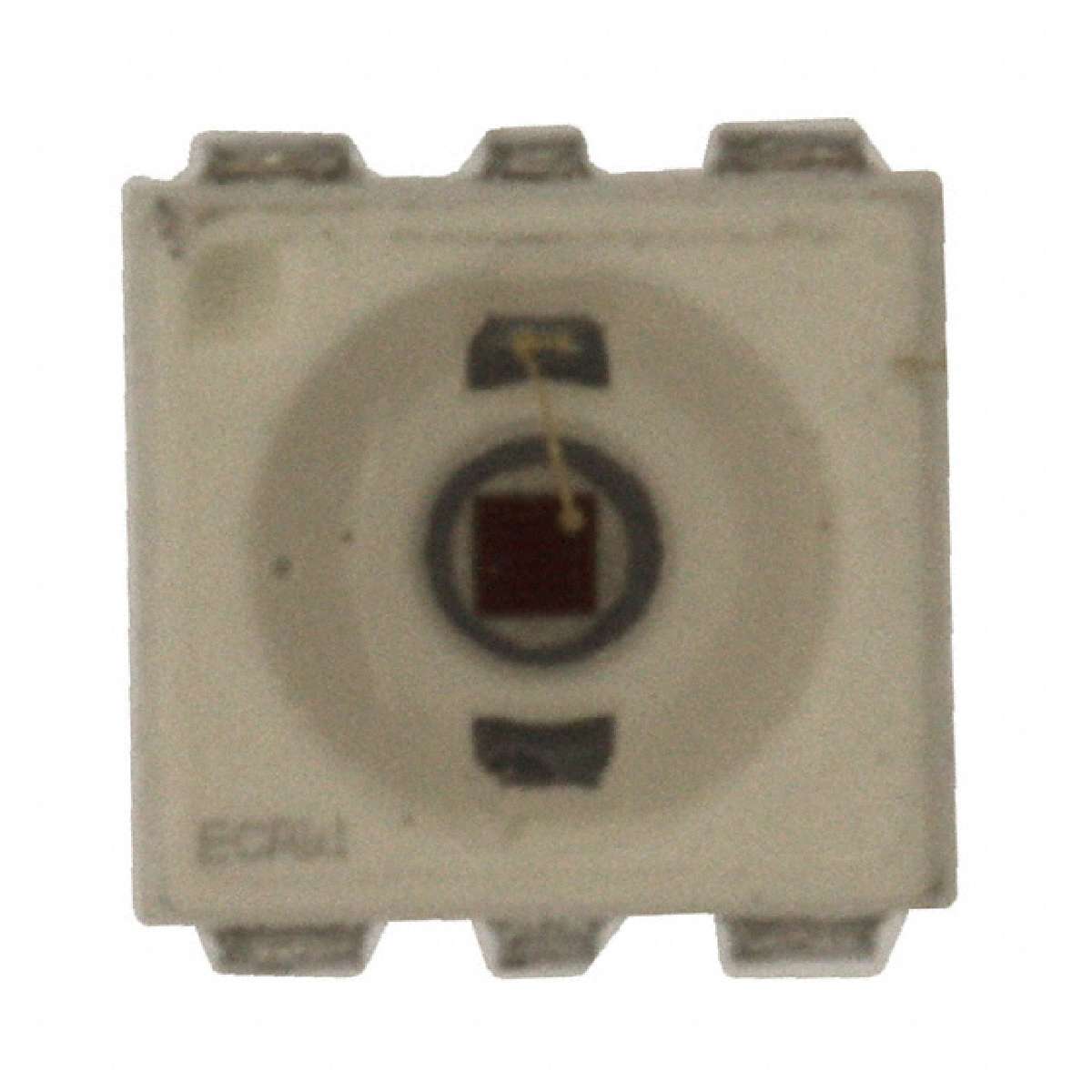

LED Uni-Color Yellow 19.1lm 593nm Chip LED 6Pin SMD T/R
照明 - 彩色 series 黄色 589nm(583nm ~ 595nm) 6-SMD,J 引线
得捷:
LED TOPLED YLW 589NM 6PLCC
艾睿:
LED Uni-Color Yellow 594nm Automotive 6-Pin PLCC T/R
安富利:
LED Uni-Color Yellow 19.1lm 593nm Chip LED 6-Pin SMD T/R
Verical:
LED Uni-Color Yellow 594nm Automotive 6-Pin PLCC T/R
Win Source:
LED TOPLED YLW 589NM 6PLCC / LED Lighting Color series Yellow 589nm 583nm ~ 595nm 6-SMD, J-Lead
额定功率 1 W
正向电压 2.25 V
波长 589nm 583nm ~ 595nm
发光强度 2.8 cd
视角 120°
峰值波长 594 nm
热阻 50 ℃/W
测试电流 140 mA
正向电流 140 mA
正向电压Max 2.65 V
正向电流Max 200 mA
工作温度Max 110 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6
封装 PLCC-6

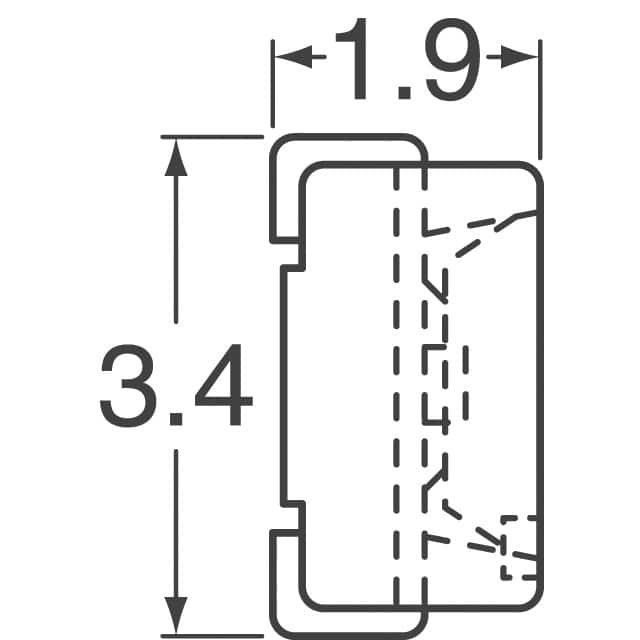

长度 3.2 mm
宽度 3 mm
高度 1.9 mm
封装 PLCC-6
颜色 Yellow
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LY G6SP-CADB-36-1-Z Osram Opto 欧司朗 | 当前型号 | 当前型号 |
CHL8318-03CRT 英飞凌 | 功能相似 | LY G6SP-CADB-36-1-Z和CHL8318-03CRT的区别 |
