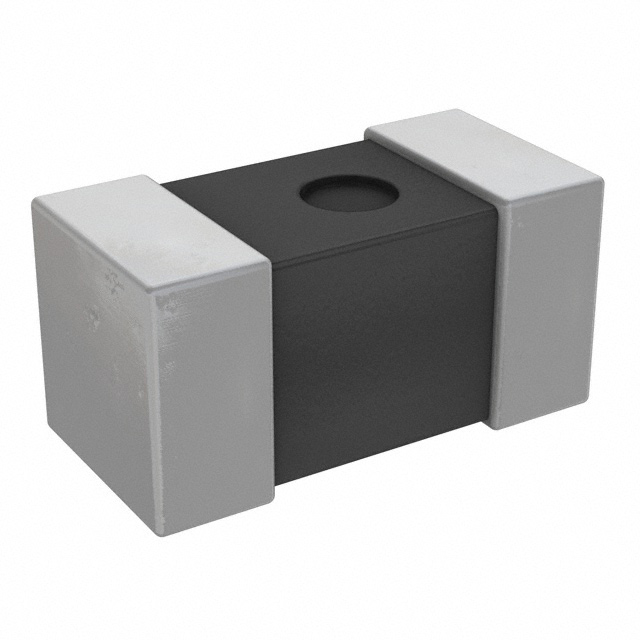

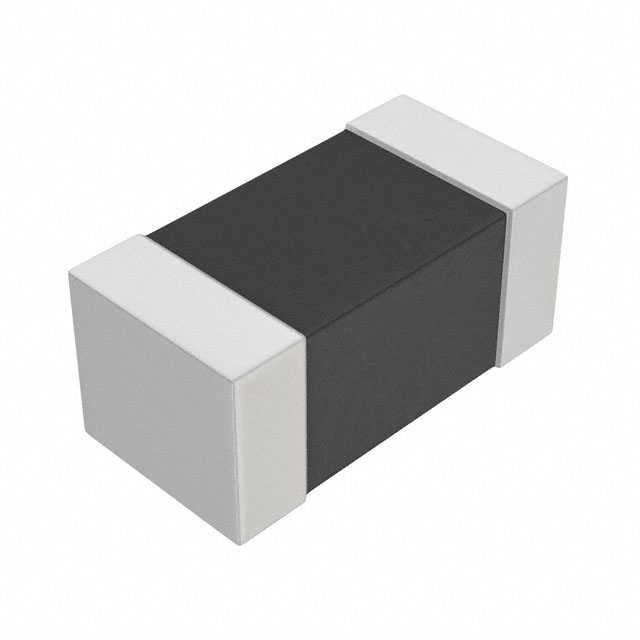

LQP03TN5N6J02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

固定器

立创商城:
5.6nH ±5% 400mΩ

得捷:
FIXED IND 5.6NH 350MA 400MOHM SM

艾睿:
This rf chip LQP03TN5N6J02D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device utilizes thin film technology. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 4G Hz. It has an inductance of 5.6n H. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 400m Ohm. It has a tolerance of 5%.

安富利:
Ind RF Chip Thin Film 5.6nH 5% 500MHz 14Q-Factor 350mA 0201 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 5.6nH 5% 500MHz 14Q-Factor 350mA 400mOhm DCR 0201 Paper T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0056uH 5% 500MHz 14Q-Factor 0.35A 0.4Ohm DCR 0201 T/R

儒卓力:
**LQP03TN 5,6nH 350mA 5% TFT **

Win Source:
FIXED IND 5.6NH 350MA 400 MOHM
