LQP03TG5N1H02D

片式电感

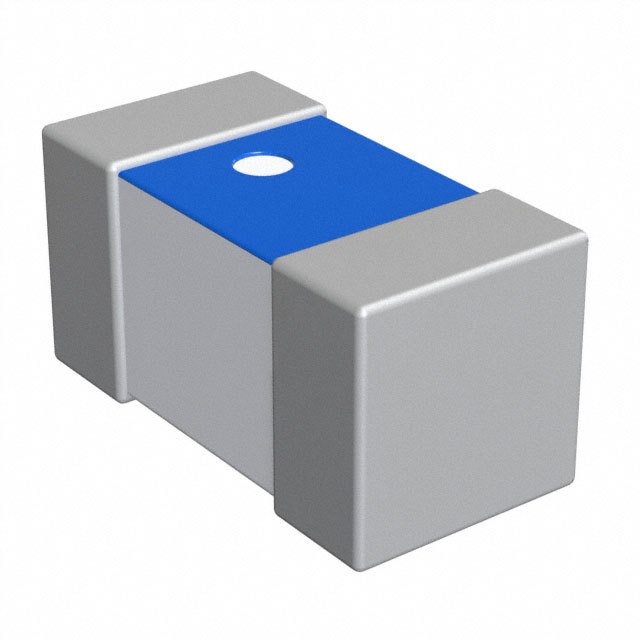

5.1nH Unshielded Thick Film Inductor 250mA 720mOhm Max 0201 0603 Metric

得捷:
FIXED IND 5.1NH 250MA 720MOHM SM

立创商城:
5.1nH ±3% 720mΩ

贸泽:
Fixed Inductors 0201 5.1nH 3%

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this general purpose chip LQP03TG5N1H02D surface mount inductor from Murata is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes thin film technology. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6.5G Hz. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 720m Ohm. It has a tolerance of 3%. It has an inductance of 5.1n H. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep.

安富利:
Ind RF Chip Thin Film 5.1nH 3% 500MHz 12Q-Factor 250mA 0201 Paper T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0051uH 3% 500MHz 12Q-Factor 0.25A 0.72Ohm DCR 0201 T/R
