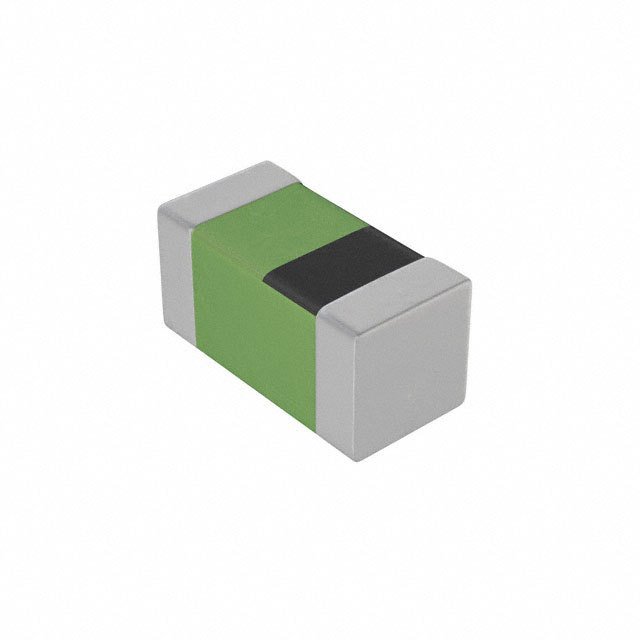

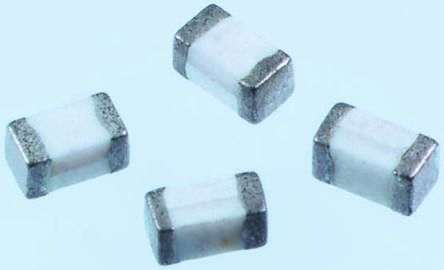

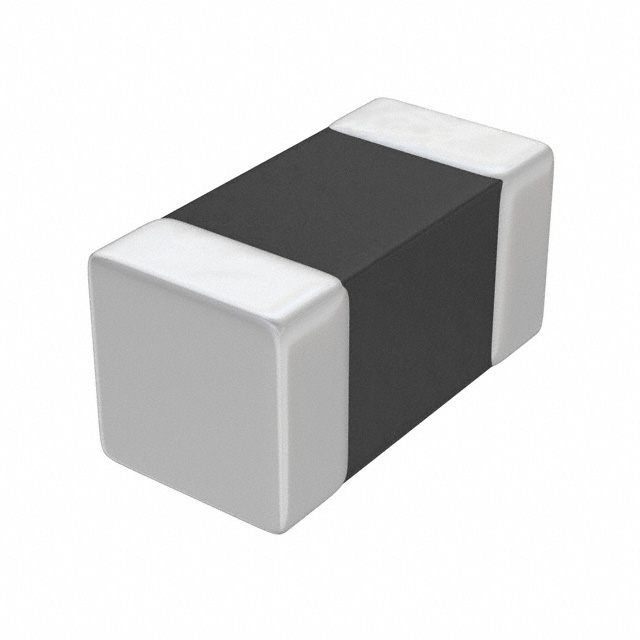

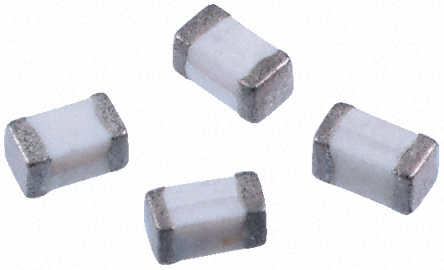

LQG15HS2N4S02D

LQG 系列 0402 2.4 nH 300 mA 表面贴装 多层 贴片 电感

Murata 0402 LQG15HS 系列高频片式器

Murata LQGH15HS 电感器是通用多层贴片式电感器。 尽管 Q 系数比线绕等效产品低，在诸多产品中，其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。

LQGH15HS SMD 电感器高度可靠，且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。

可用于高频率电路

较低直流电阻使设备功耗更低

高频率时稳定

得捷:
FIXED IND 2.4NH 850MA 150MOHM SM

欧时:
Murata LQG15HS 系列 2.4 nH 绕线贴片电感器 LQG15HS2N4S02D, ±0.3nH容差, 300mA Idc Q:8

立创商城:
2.4nH ±0.3nH 110mΩ

艾睿:

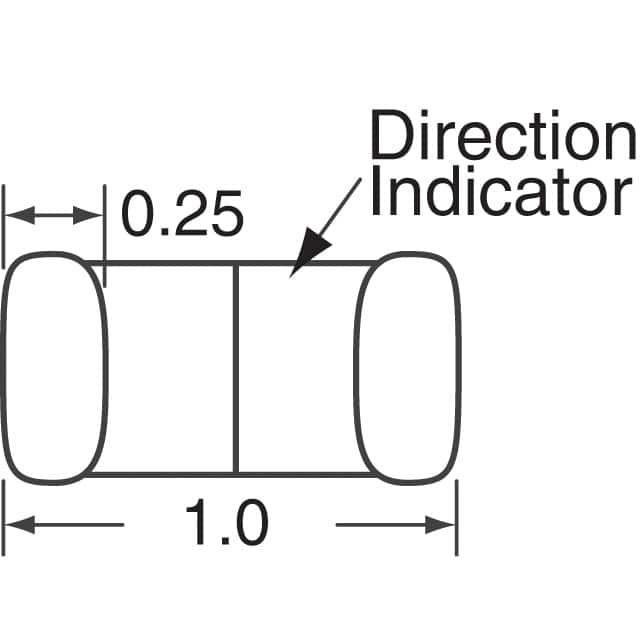

Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQG15HS2N4S02D surface mount inductor from Murata to save valuable space. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device utilizes multi-layer technology. It has an inductance of 2.4n H. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 110m Ohm. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz.

安富利:
Ind RF Chip Multi-Layer 2.4nH 0.3nH 100MHz 8Q-Factor Air 300mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Unshielded Multi-Layer 2.4nH 0.3nH 100MHz 8Q-Factor Ceramic 850mA 110mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.0024uH 0.3nH 100MHz 8Q-Factor Air 0.85A 0.11Ohm DCR 0402 T/R

儒卓力:
**LQG15HS 0,0024uH 0,3A 0,3nH MLT **

Win Source:
FIXED IND 2.4NH 850MA 150 MOHM
