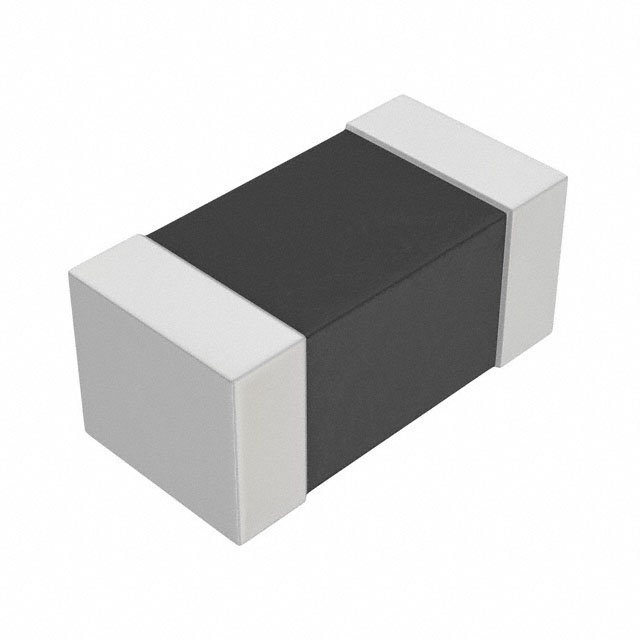

LQP03TN0N6B02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

固定器

得捷:
FIXED IND 0.6NH 850MA 70MOHM SMD

欧时:
Chip Coil Inductor 0201 0.6uH 850mA

立创商城:
0.6nH ±0.1nH 70mΩ

贸泽:
Fixed Inductors 0.6nH 0.1nH 500MHz

艾睿:
Save valuable space on a PCB with this rf chip LQP03TN0N6B02D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 70m Ohm. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 20G Hz. This device utilizes thin film technology. It has an inductance of 0.6n H.

安富利:
Ind RF Chip Thin Film 0.6nH 0.1nH 500MHz 14Q-Factor 850mA 0201 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 0.6nH 0.1nH 500MHz 14Q-Factor 850mA 70mOhm DCR 0201 T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0006uH 0.1nH 500MHz 14Q-Factor 0.85A 0.07Ohm DCR 0201 T/R
