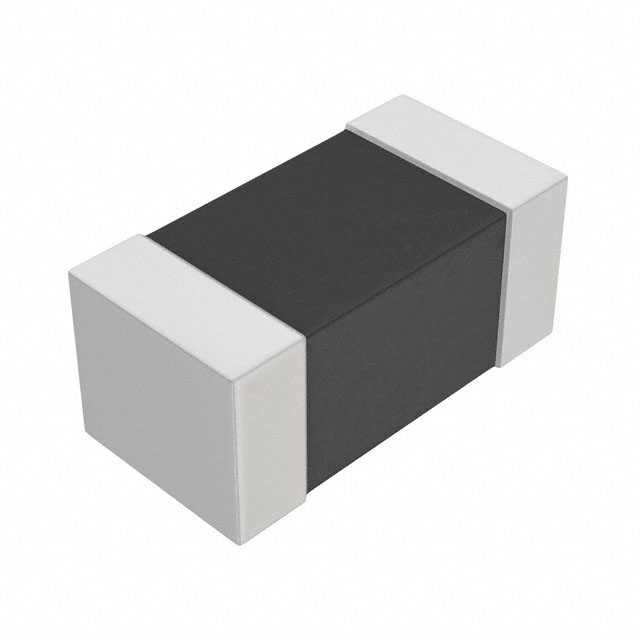

LQP03TN6N2J02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

固定器

立创商城:
6.2nH ±5% 600mΩ

得捷:
FIXED IND 6.2NH 300MA 600MOHM SM

艾睿:
This rf chip LQP03TN6N2J02D surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 4G Hz. This device utilizes thin film technology. It has an inductance of 6.2n H. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 600m Ohm. It has a tolerance of 5%.

安富利:
Ind RF Chip Thin Film 6.2nH 5% 500MHz 14Q-Factor 300mA 0201 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 6.2nH 5% 500MHz 14Q-Factor 300mA 600mOhm DCR 0201 T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0062uH 5% 500MHz 14Q-Factor Non Magnetic 0.3A 0.6Ohm DCR 0201 T/R

Win Source:
FIXED IND 6.2NH 300MA 600 MOHM
