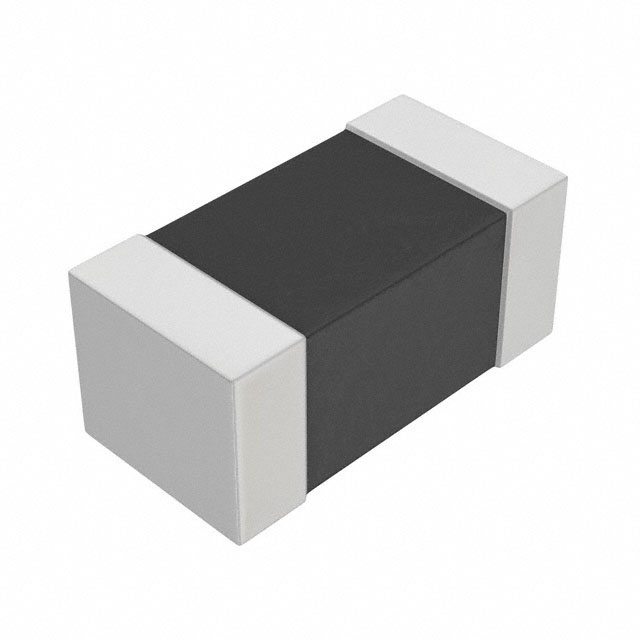

LQP03TN8N2J02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

固定器

立创商城:
8.2nH ±5% 700mΩ

得捷:
FIXED IND 8.2NH 250MA 700MOHM SM

贸泽:
Fixed Inductors 8.2nH 5% 500MHz

艾睿:
Use this rf chip LQP03TN8N2J02D surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 3.6G Hz. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 700m Ohm. It has a tolerance of 5%. This device is made with thin film technology. It has an inductance of 8.2n H. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep.

安富利:
Ind RF Chip Thin Film 8.2nH 5% 500MHz 14Q-Factor 250mA 0201 Paper T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0082uH 5% 500MHz 14Q-Factor Non Magnetic 0.25A 0.7Ohm DCR 0201 T/R

儒卓力:
**LQP03TN 8,2nH 250mA 5% TFT **

Win Source:
8.2nH Unshielded Thin Film Inductor 250mA 700 mOhm Max 0201 0603 Metric
