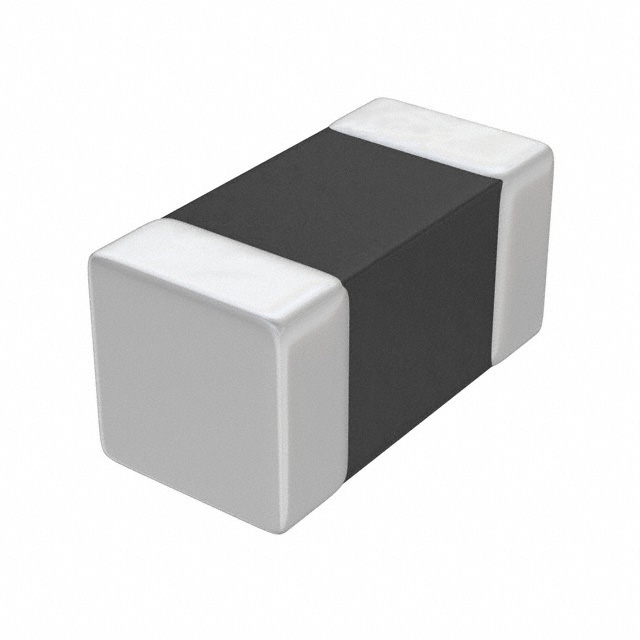

LQG15HS10NJ02D

片式电感器（片状线圈），高频多层型 Chip Inductor Chip Coil for High Frequency Multilayer Type

固定器

得捷:
FIXED IND 10NH 500MA 260MOHM SMD

欧时:
Fixed Inductor 10nH 300mA 260 mOhm

立创商城:
10nH ±5% 260mΩ

艾睿:
This rf chip LQG15HS10NJ02D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 10n H. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 260m Ohm. It has a tolerance of 5%. This device is made with multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 3.4G Hz.

安富利:
Ind RF Chip Multi-Layer 10nH 5% 100MHz 8Q-Factor Air 300mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Multi-Layer 10nH 5% 100MHz 8Q-Factor Air 300mA 260mOhm DCR 0402 Paper T/R

TME:
Inductor: ceramic; SMD; 0402; 10nH; 500mA; 0.26Ω; Q:8; ftest:100MHz

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.01uH 5% 100MHz 8Q-Factor Air 0.5A 0.26Ohm DCR 0402 T/R

儒卓力:
**LQG15HS 0,010uH 300mA 5% MLT **

Win Source:
FIXED IND 10NH 300MA 260 MOHM
