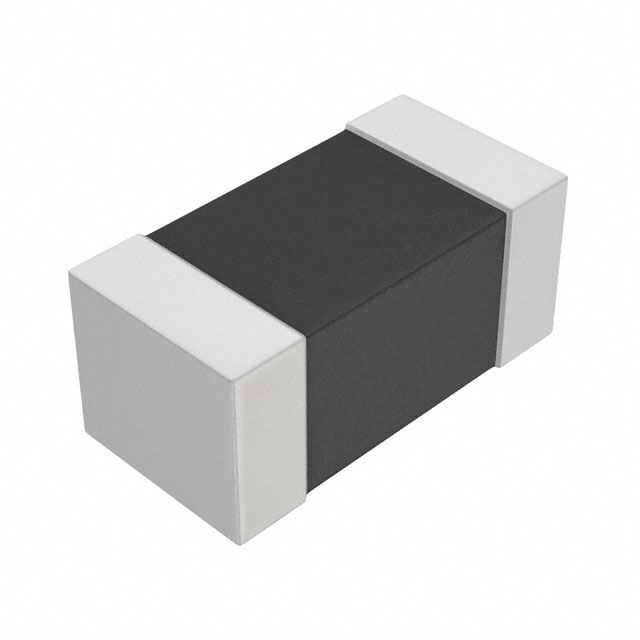

LQP03TN5N1H02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

固定器

得捷:
FIXED IND 5.1NH 350MA 400MOHM SM

立创商城:
5.1nH ±3% 400mΩ

艾睿:
Use this rf chip LQP03TN5N1H02D surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 400m Ohm. This device utilizes thin film technology. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 4.2G Hz. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. It has an inductance of 5.1n H. It has a tolerance of 3%.

安富利:
Ind RF Chip Thin Film 5.1nH 3% 500MHz 14Q-Factor 350mA 0201 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 5.1nH 3% 500MHz 14Q-Factor 350mA 400mOhm DCR 0201 Paper T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0051uH 3% 500MHz 14Q-Factor Non Magnetic 0.35A 0.4Ohm DCR 0201 T/R

儒卓力:
**LQP03TN 5,1nH 350mA 3% TFT **

Win Source:
5.1nH Unshielded Thin Film Inductor 350mA 400 mOhm Max 0201 0603 Metric
