0201 200nH ±5%
200nH Unshielded Thick Film Inductor 60mA 13Ohm Max 0201 0603 Metric
立创商城:
200nH ±5% 13Ω
得捷:
FIXED IND 200NH 60MA 13 OHM SMD
艾睿:

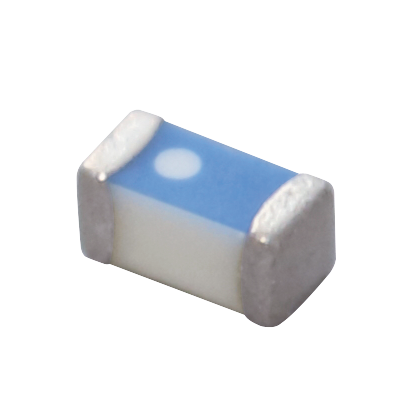

Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this rf chip LQP03TNR20J02D surface mount inductor from Murata is perfect for you! This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 60m A with a maximum resistance of 13 Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 500M Hz. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. It has a tolerance of 5%. This device is made with thin film technology. It has an inductance of 200n H.
Chip1Stop:
Inductor RF Chip Thin Film 200nH 5% 100MHz 5Q-Factor 60mA 13Ohm DCR 0201 T/R
Verical:
Inductor RF Chip Unshielded Thin Film 0.2uH 5% 100MHz 5Q-Factor Non Magnetic 0.06A 13Ohm DCR 0201 T/R
