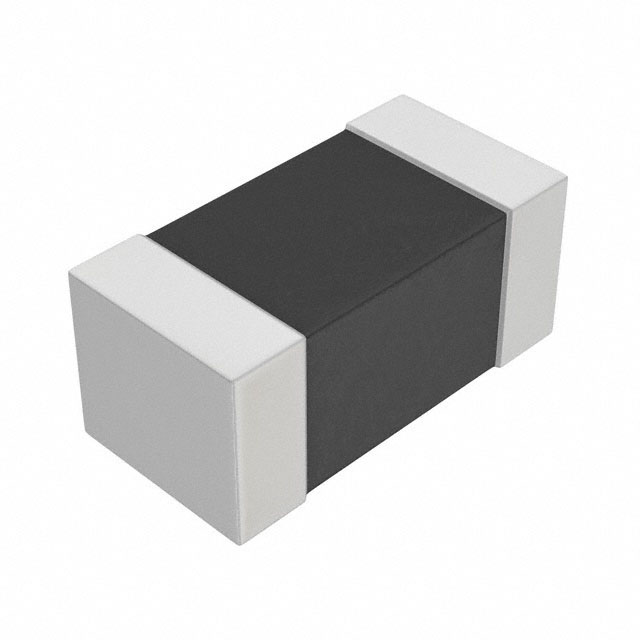

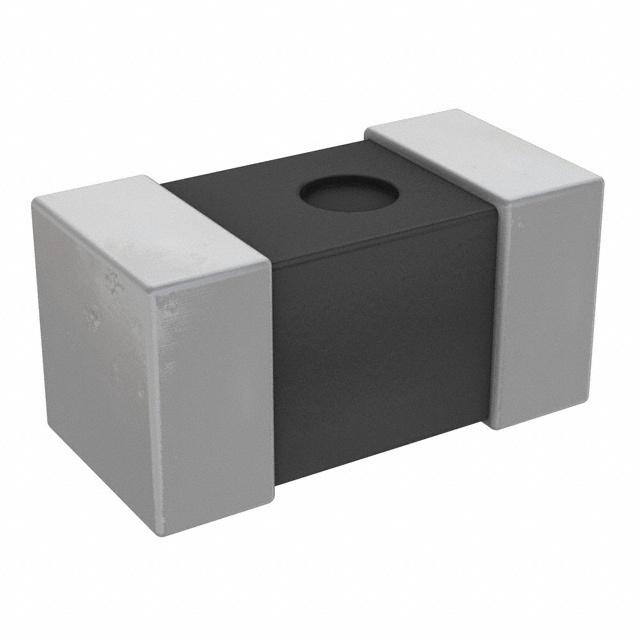

片式电感器(片状线圈),高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type
固定器
得捷:
FIXED IND 2.2NH 600MA 150MOHM SM
立创商城:
2.2nH ±0.2nH 150mΩ
艾睿:
This rf chip LQP03TN2N2C02D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 150m Ohm. This device is made with thin film technology. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 11G Hz. It has an inductance of 2.2n H.
安富利:
Ind RF Chip Thin Film 2.2nH 0.2nH 500MHz 14Q-Factor 600mA 0201 Paper T/R
Chip1Stop:
Inductor RF Chip Thin Film 2.2nH 0.2nH 500MHz 14Q-Factor 600mA 150mOhm DCR 0201 T/R
Verical:
Inductor RF Chip Unshielded Thick Film 0.0022uH 0.2nH 500MHz 14Q-Factor 0.6A 0.15Ohm DCR 0201 T/R
儒卓力:
**LQP03TN 2,2nH 600mA 0,2nH TFT **
Win Source:
FIXED IND 2.2NH 600MA 150 MOHM
额定电流 600 mA
电感 0.0022 µH
自谐频率 11 GHz
产品系列 LQP
电感公差 ±0.2 nH
测试频率 500 MHz
电阻DC) ≤150 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.15 Ω
安装方式 Surface Mount
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.33 mm
封装 0201
重量 0.0002 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 15000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
