LQG15HN3N6S02D

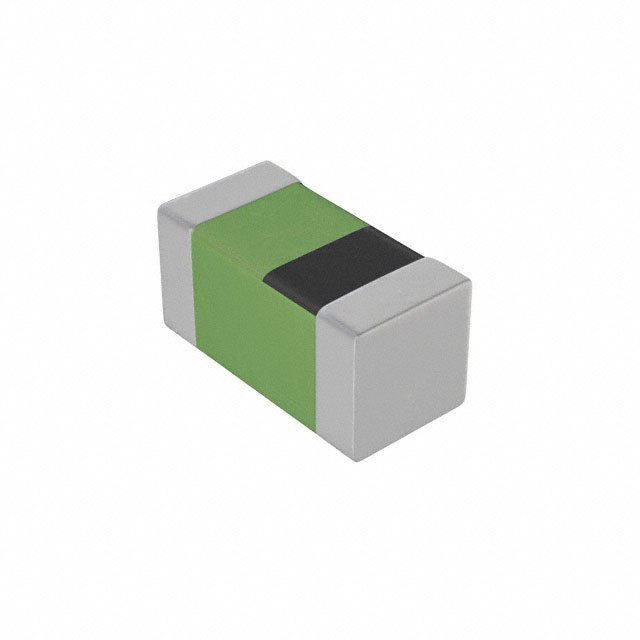

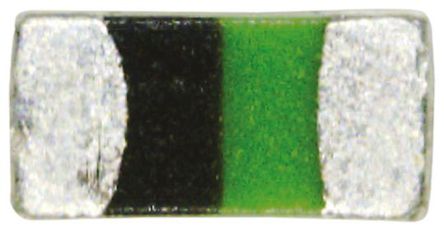

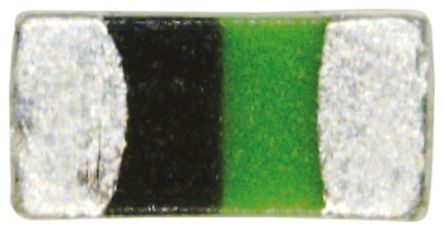

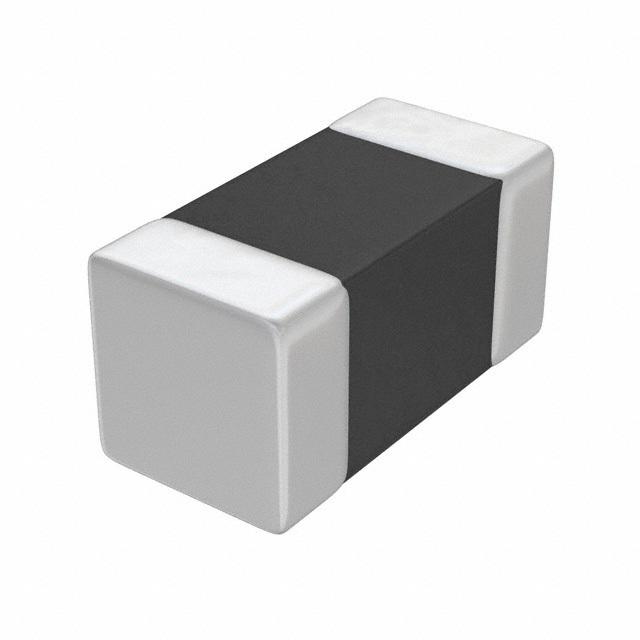

Murata 0402 LQQ15HN 系列高频片式电感器Murata LQG15HN SMD 电感器具有多层结构。 尽管 Q 系数比线绕等效产品低，在诸多产品中，其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。 LQGH15HS SMD 电感器高度可靠，且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。可用于高频率电路 高频率时具有极佳的稳定性 单片结构 ### 表面安装 0402 电感器（扼流圈）

固定器

得捷:
FIXED IND 3.6NH 700MA 190MOHM SM

立创商城:
3.6nH ±0.3nH 130mΩ

欧时:
Murata LQG15H 系列 3.6 nH 绕线贴片电感器 LQG15HN3N6S02D, ±0.3nH容差, 300mA Idc Q:8, 190mΩ最大直流电阻

贸泽:
Fixed Inductors 3.6 NH +-.3NH

艾睿:
This rf chip LQG15HN3N6S02D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with multi-layer technology. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 190m Ohm. It has an inductance of 3.6n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.

安富利:
Ind RF Chip Multi-Layer 3.6nH 0.3nH 100MHz 8Q-Factor Air 300mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Multi-Layer 3.6nH 0.3nH 100MHz 8Q-Factor Air 300mA 190mOhm DCR 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.0036uH 0.3nH 100MHz 8Q-Factor Air 0.7A 0.13Ohm DCR 0402 T/R

儒卓力:
**LQG15HN 0,0036uH 300mA MLT **
