LQG15HS9N1J02D

Murata 0402 LQQ15HS 系列高频片式电感器Murata LQGH15HS 电感器是通用多层贴片式电感器。 尽管 Q 系数比线绕等效产品低，在诸多产品中，其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。 LQGH15HS SMD 电感器高度可靠，且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。可用于高频率电路 较低直流电阻使设备功耗更低 高频率时稳定 ### 表面安装 0402 电感器（扼流圈）

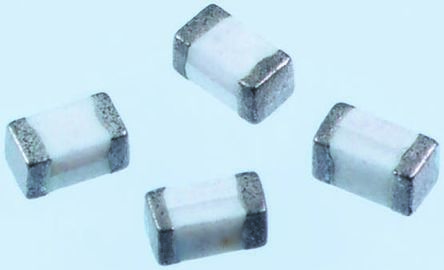

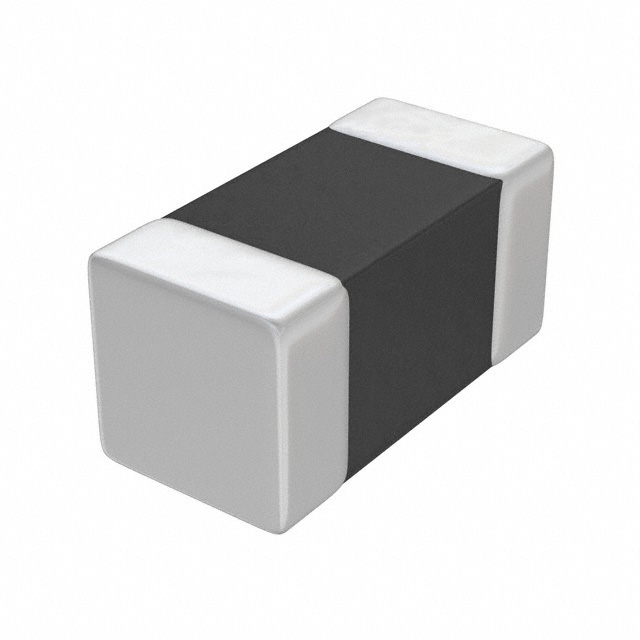

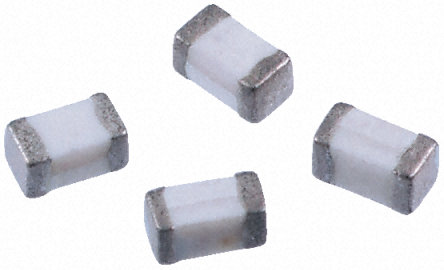

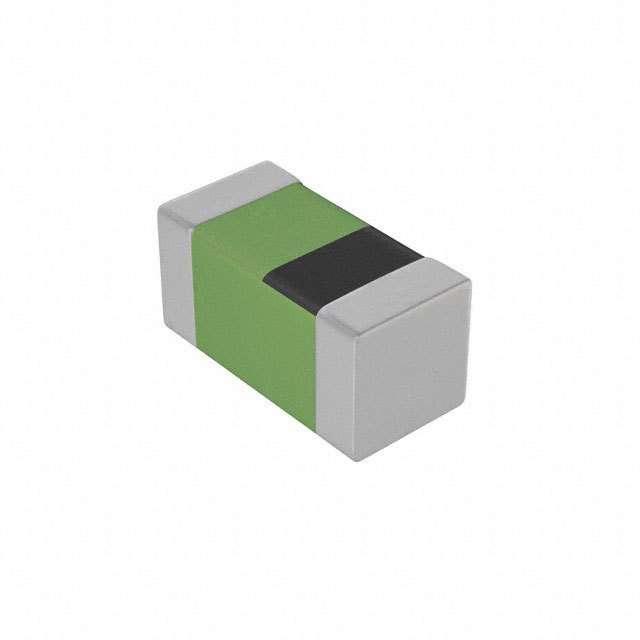

Murata 0402 LQG15HS 系列高频片式器

Murata LQGH15HS 电感器是通用多层贴片式电感器。 尽管 Q 系数比线绕等效产品低，在诸多产品中，其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。

LQGH15HS SMD 电感器高度可靠，且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。

可用于高频率电路

较低直流电阻使设备功耗更低

高频率时稳定

欧时:
Murata LQG15HS 系列 9.1 nH 绕线贴片电感器 LQG15HS9N1J02D, ±5%容差, 300mA Idc Q:8, 260mΩ最大直流电阻

得捷:
FIXED IND 9.1NH 500MA 260MOHM SM

立创商城:
9.1nH ±5% 260mΩ

艾睿:
This rf chip LQG15HS9N1J02D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 9.1n H. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 260m Ohm. It has a tolerance of 5%. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 3.4G Hz. This device is made with multi-layer technology. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.

安富利:
Ind RF Chip Multi-Layer 9.1nH 5% 100MHz 8Q-Factor Air 300mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Multi-Layer 9.1nH 5% 100MHz 8Q-Factor Air 300mA 260mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.0091uH 5% 100MHz 8Q-Factor Air 0.5A 0.26Ohm DCR 0402 T/R

儒卓力:
**LQG15HS 0,0091uH 300mA 5% MLT **

Win Source:
9.1nH Unshielded Multilayer Inductor 300mA 260 mOhm Max 0402 1005 Metric
