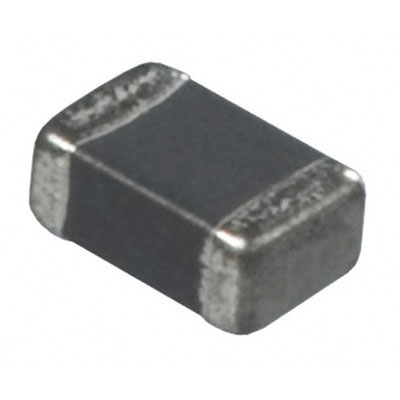

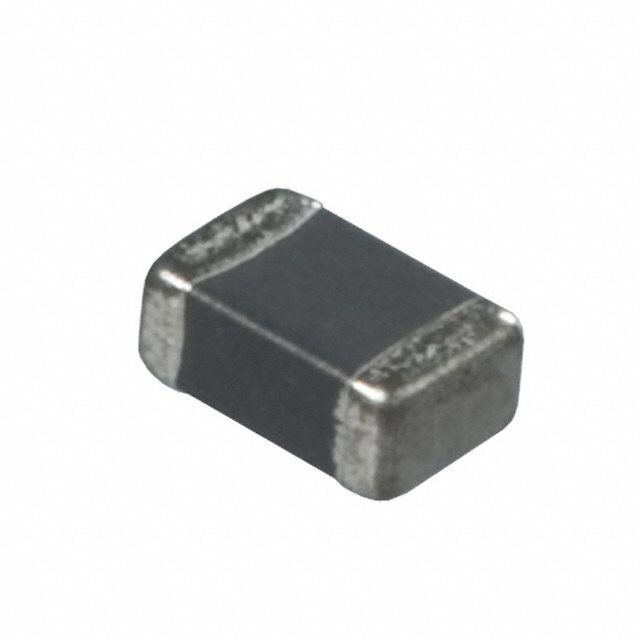

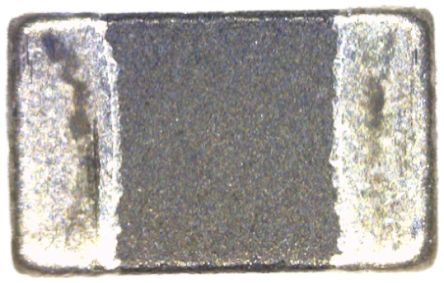

Murata 0805 LQW21F 系列磁性屏蔽多层片式扼流圈LQM21 系列的磁性屏蔽片式电感器设计,采用 Murata 的原始多层处理技术和磁性材料。 2.0x1.25mm 的微型尺寸使电气设备的设计更紧凑。 ### 表面安装 0805 电感器(扼流圈)
固定器
得捷:
FIXED IND 4.7UH 80MA 390MOHM SMD
立创商城:
4.7uH ±30% 390mΩ
欧时:
Murata LQM21F 系列 LQM21FN4R7N00L 4.7 μH ±30% 多层贴片式电感器, 0805 2012M封装, SRF: 25MHz 80mA dc
贸泽:
Fixed Inductors 4.7 UH 30%
艾睿:
This power chip LQM21FN4R7N00L surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 2.2 mm long, 1.45 mm tall and 1.45 mm deep. It has an inductance of 4.7u H. This device is made with multi-layer technology. This SMD inductor has a maximum DC current of 80m A with a maximum resistance of 390m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 25M Hz.
Jameco:
Ind Chip Shielded 4.7uH 30% 1MHz 80mA 0805 Embossed Tape and Reel
安富利:
Ind Power Chip Shielded Multi-Layer 4.7uH 30% 1MHz Ferrite 80mA 0805 Embossed T/R
TME:

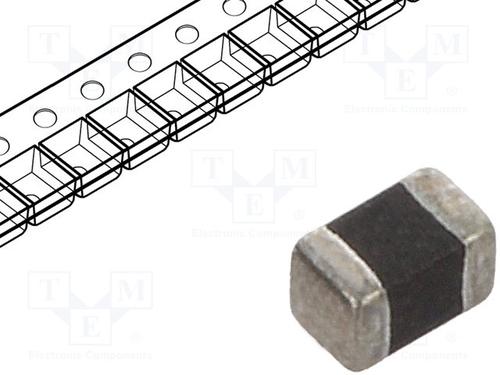

Inductor: ferrite; SMD; 0805; 4.7uH; 80mA; 0.39Ω; ftest:1MHz; ±30%
Verical:
Inductor Power Chip Shielded Multi-Layer 4.7uH 30% 1MHz Ferrite 0.08A 0.39Ohm DCR 0805 T/R
儒卓力:
**LQM21FN 4,7uH 80mA 30% MLT **
Win Source:
4.7μH Shielded Multilayer Inductor 80mA 390 mOhm Max 0805 2012 Metric
额定电流 80 mA
容差 ±30 %
电感 4.7 µH
自谐频率 25 MHz
产品系列 LQM
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤390 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 300 mΩ
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
重量 0.016 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
