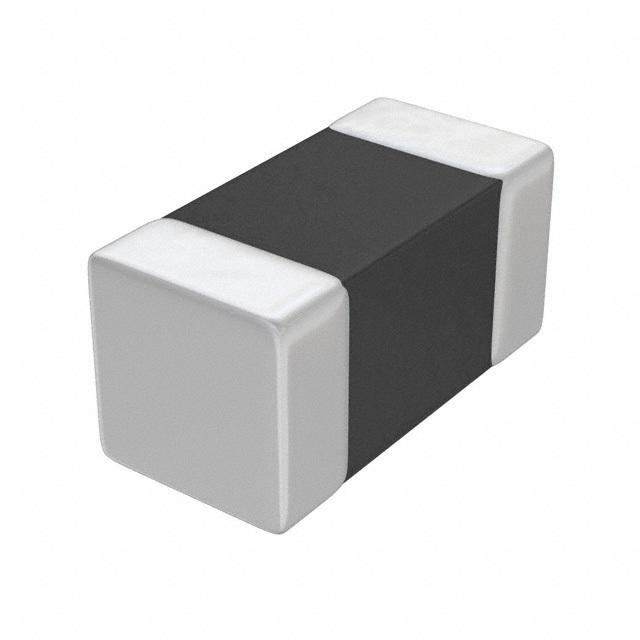

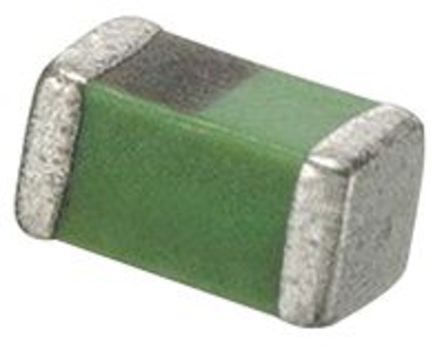

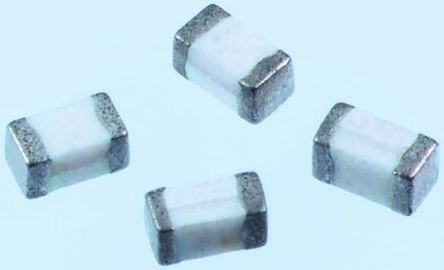

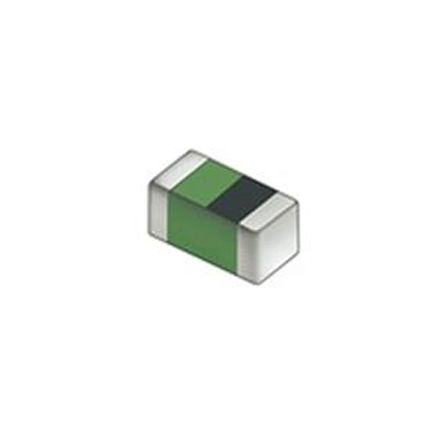

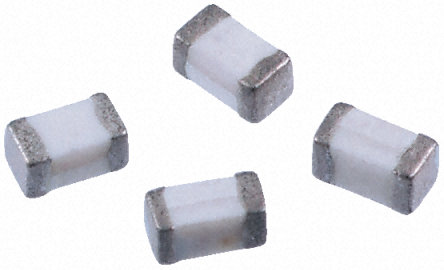

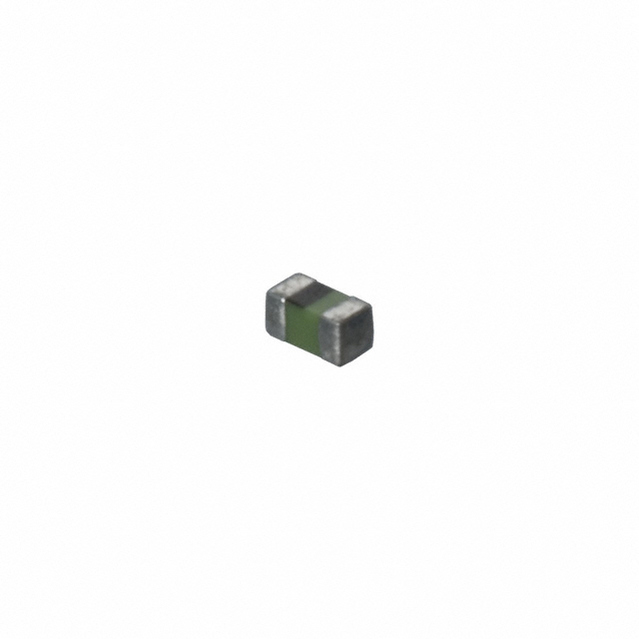

LQG15HSR12J02D

Murata 0402 LQQ15HS 系列高频片式电感器Murata LQGH15HS 电感器是通用多层贴片式电感器。 尽管 Q 系数比线绕等效产品低，在诸多产品中，其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。 LQGH15HS SMD 电感器高度可靠，且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。可用于高频率电路 较低直流电阻使设备功耗更低 高频率时稳定 ### 表面安装 0402 电感器（扼流圈）

固定器

立创商城:
120nH ±5% 1.3Ω

得捷:
FIXED IND 120NH 200MA 1.3OHM SMD

欧时:
Murata LQG15HS 系列 LQG15HSR12J02D 120 nH ±5% 多层贴片式电感器, 0402 1005M封装 Q: 8 150mA dc 1.3Ω Rdc

贸泽:
Fixed Inductors 0.12uH 5% Hi-Freq

艾睿:
This rf chip LQG15HSR12J02D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 1.3 Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 600M Hz. This device utilizes multi-layer technology. It has an inductance of 120n H.

安富利:
Ind RF Chip Multi-Layer 120nH 5% 100MHz 8Q-Factor Air 150mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Multi-Layer 120nH 5% 100MHz 8Q-Factor Air 150mA 1.3Ohm DCR 0402 T/R

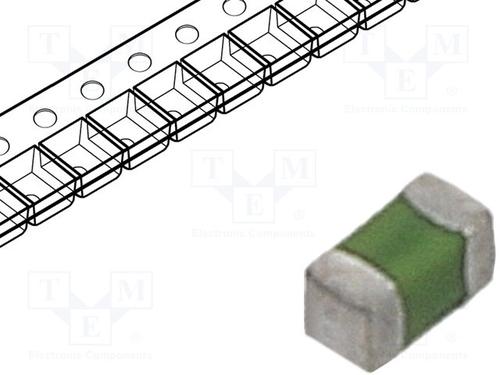

TME:
Inductor: ceramic; SMD; 0402; 120nH; 200mA; 1.3Ω; Q:8; ftest:100MHz

Verical:
Inductor RF Chip Unshielded Multi-Layer 120nH 5% 100MHz 8Q-Factor Ceramic 200mA 1.3Ohm DCR 0402 T/R

儒卓力:
**LQG15HS 0,12uH 150mA 5% MLT **

Win Source:
120nH Unshielded Multilayer Inductor 150mA 1.3 Ohm Max 0402 1005 Metric
