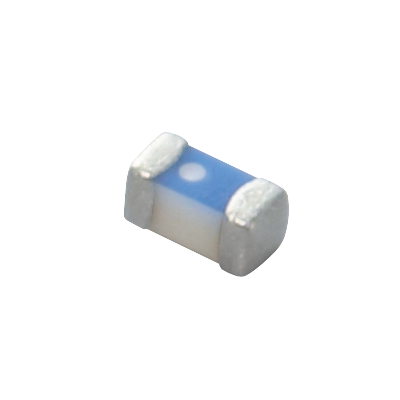

LQP02TN2N0B02D

01005 2nH ±0.1nH

2nH Unshielded Thick Film Inductor 200mA 750mOhm Max 01005 0402 Metric

得捷:
FIXED IND 2NH 200MA 750 MOHM SMD

立创商城:
2nH ±0.1nH 750mΩ

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this rf chip LQP02TN2N0B02D surface mount inductor from Murata is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 0.42 mm long, 0.22 mm tall and 0.22 mm deep. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 750m Ohm. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 9G Hz. It has an inductance of 2n H. This device utilizes thin film technology.

Verical:
Inductor RF Chip Unshielded Thick Film 0.002uH 0.1nH 500MHz 8Q-Factor 0.2A 0.75Ohm DCR 01005 T/R

Win Source:
FIXED IND 2NH 200MA 750 MOHM SMD
