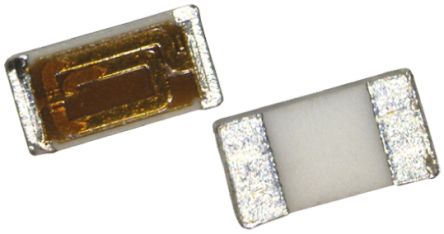

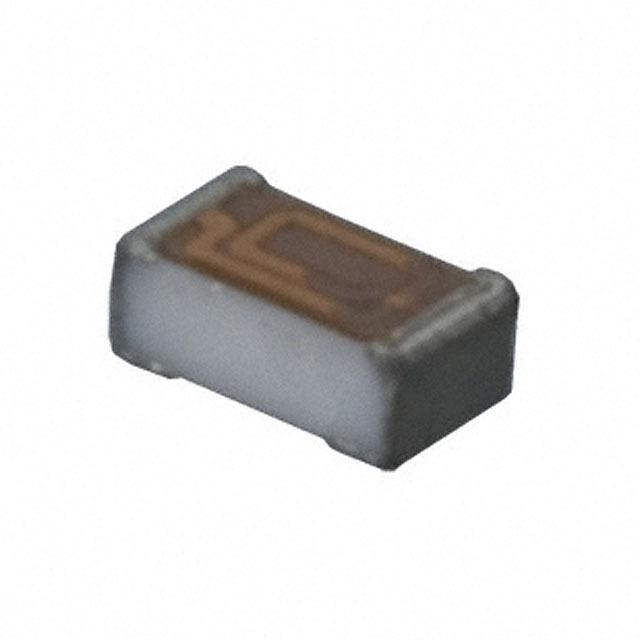

LQP15MN1N0B02D

LQP15M 系列 0402 1 nH 400 mA SMD 高频 贴片电感

固定器

立创商城:
1nH ±0.1nH 100mΩ

得捷:
FIXED IND 1NH 400MA 100 MOHM SMD

欧时:
Murata LQP15M 系列 LQP15MN1N0B02D 1 nH ±0.1nH 铁氧体 多层贴片式电感器, 0402 1005M封装, SRF: 6GHz Q: 13

艾睿:
This rf chip LQP15MN1N0B02D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 100m Ohm. This device utilizes thin film technology. It has an inductance of 1n H.

安富利:
Ind RF Chip Thin Film 1nH 0.1nH 500MHz 13Q-Factor 400mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Unshielded Thin Film 1nH 0.1nH 500MHz 13Q-Factor Ceramic 400mA 100mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.001uH 0.1nH 500MHz 13Q-Factor Non Magnetic 0.4A 0.1Ohm DCR 0402 T/R

Win Source:
FIXED IND 1NH 400MA 100 MOHM SMD
