01005 0.9nH ±0.1nH
0.9nH Unshielded Thick Film Inductor 320mA 500mOhm Max 01005 0402 Metric
得捷:
FIXED IND 0.9NH 320MA 500MOHM SM
立创商城:
0.9nH ±0.1nH 500mΩ
贸泽:
Fixed Inductors 01005 0.9nH 0.1nH
艾睿:

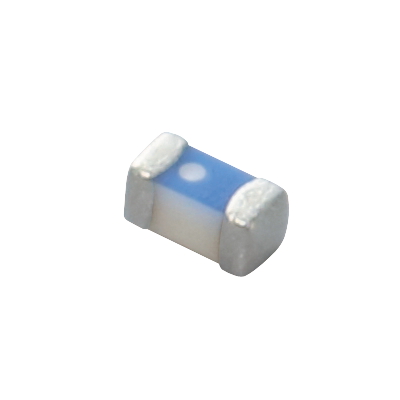

This rf chip LQP02TN0N9B02D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device utilizes thin film technology. This product is 0.42 mm long, 0.22 mm tall and 0.22 mm deep. This SMD inductor has a maximum DC current of 320m A with a maximum resistance of 500m Ohm. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 13G Hz. It has an inductance of 0.9n H.
Verical:
Inductor RF Chip Unshielded Thick Film 0.0009uH 0.1nH 500MHz 8Q-Factor 0.32A 0.5Ohm DCR 01005 T/R
额定电流 320 mA
电感 0.0009 µH
自谐频率 13000 MHz
产品系列 LQP
电感公差 ±0.1 nH
测试频率 500 MHz
电阻DC) ≤500 mΩ
工作温度Max 125 ℃
工作温度Min 55 ℃
电阻DC Max 500 mΩ
安装方式 Surface Mount
封装公制 0402
封装 0402
长度 0.4 mm
宽度 0.2 mm
高度 0.22 mm
封装公制 0402
封装 0402
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 20000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
