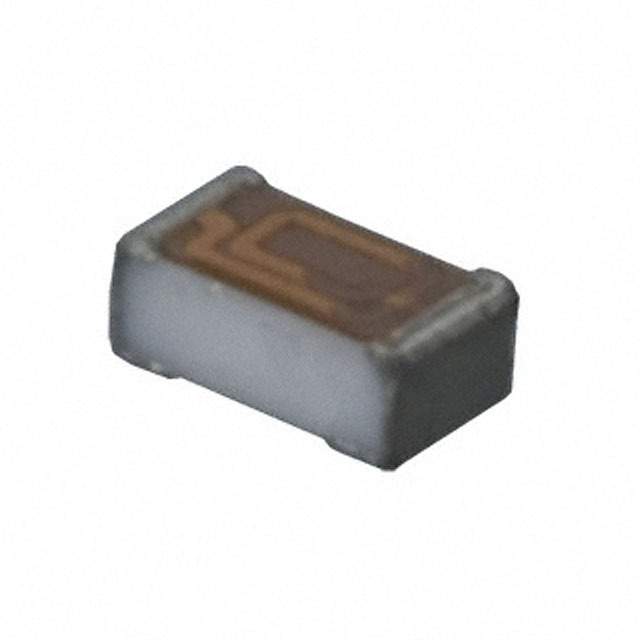

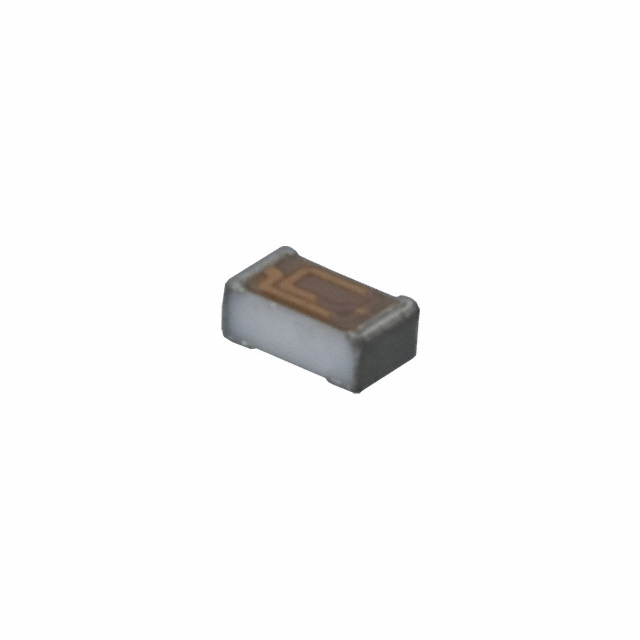

LQP15MN5N1B02D

Murata 0402 LQP15M 系列薄膜电感器LQP15M 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。 高频率范围时的高 Q 由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感 ### 应用：-移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。 移动电话 “蓝牙” W-LAN 一般高频电路 ### 表面安装 0402 电感器（扼流圈）

固定器

欧时:

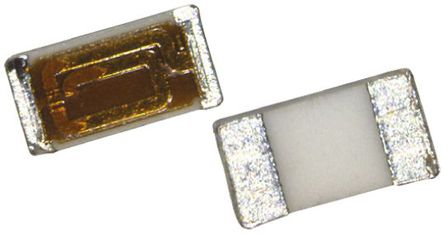

Murata LQP15M 系列 LQP15MN5N1B02D 5.1 nH ±0.1nH 铁氧体 多层贴片式电感器, 0402 1005M封装, SRF: 6GHz

立创商城:
5.1nH ±0.1nH 700mΩ

得捷:
FIXED IND 5.1NH 140MA 700MOHM SM

艾睿:
This rf chip LQP15MN5N1B02D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 140m A with a maximum resistance of 700m Ohm. It has an inductance of 5.1n H. This device utilizes thin film technology. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep.

安富利:
Ind RF Chip Thin Film 5.1nH 0.1nH 500MHz 13Q-Factor 140mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Unshielded Thin Film 5.1nH 0.1nH 500MHz 13Q-Factor Ceramic 140mA 700mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Thin Film 5.1nH 0.1nH 500MHz 13Q-Factor Ceramic 140mA 700mOhm DCR 0402 T/R

儒卓力:
**LQP15MN 5,1nH 140mA 0,1nH TFT **

Win Source:
5.1nH Unshielded Thin Film Inductor 140mA 700 mOhm Max 0402 1005 Metric
