Murata 0603 LQQ18N 系列高频片式电感器单片式电感器,带铁氧体磁芯,具有屏蔽网,可保护其不受外围元件干扰。 **应用:**谐振和过滤以及自冲击电路,用于电信设备。 ### SMT 0603 电感器(扼流圈)

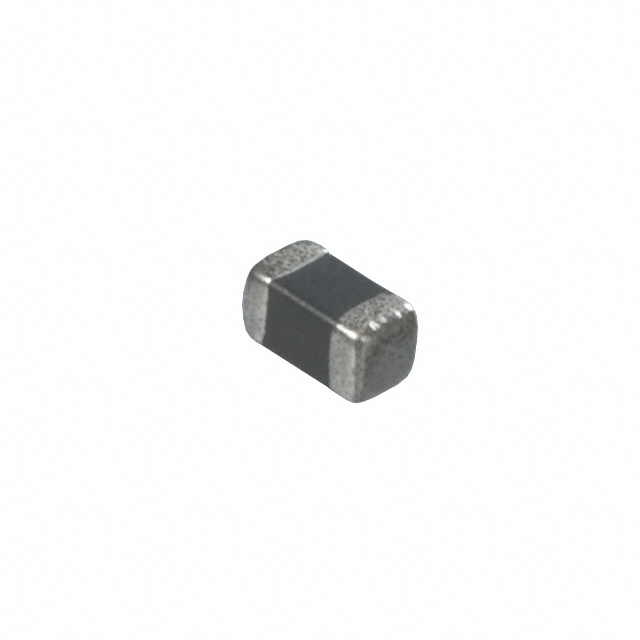

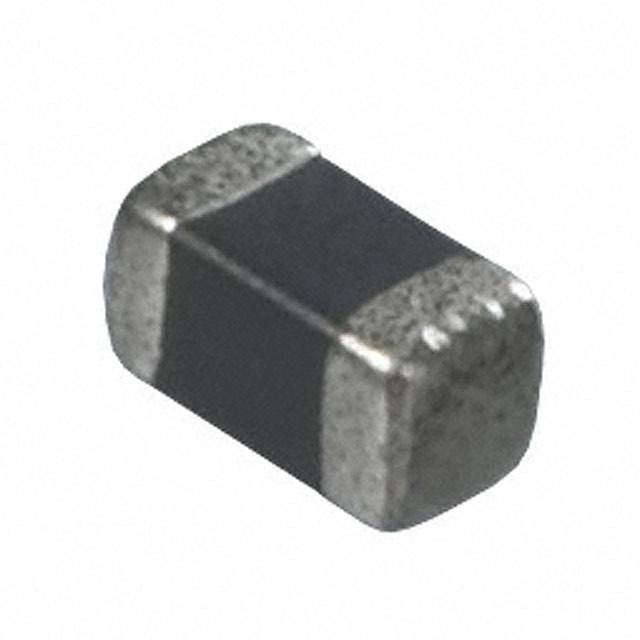

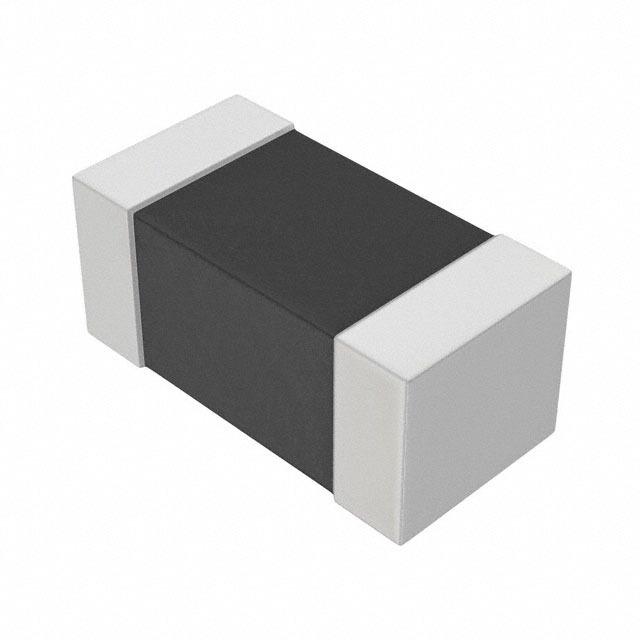

Murata 0603 LQQ18N 系列高频片式器
单片式电感器,带铁氧体磁芯,具有屏蔽网,可保护其不受外围元件干扰。
**应用:**谐振和过滤以及自冲击电路,用于电信设备。
得捷:
FIXED IND 2.2UH 120MA 520MOHM SM
欧时:

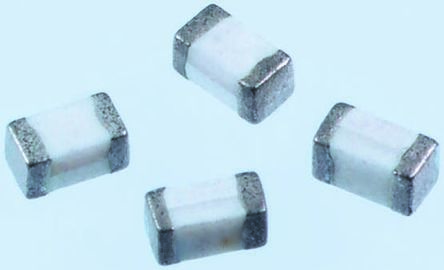

Murata LQM18N 系列 LQM18FN2R2M00D 2.2 μH ±20% 铁氧体 多层贴片式电感器, 0603 1608M封装, SRF: 80MHz
立创商城:
2.2uH ±20% 120mA 400mΩ
艾睿:
An ideal space-saving electronic component is this power chip LQM18FN2R2M00D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 20%. This product is 1.7 mm long, 0.9 mm tall and 0.9 mm deep. This SMD inductor has a maximum DC current of 120m A with a maximum resistance of 520m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 80M Hz. It has an inductance of 2.2u H. This device utilizes multi-layer technology.
Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 2.2uH 20% 1MHz Ferrite 120mA 520mOhm DCR 0603 Paper T/R
TME:
Inductor: ferrite; SMD; 0603; 2.2nH; 120mA; 0.52Ω; ftest:1MHz; ±20%
Verical:
Inductor Power Chip Shielded Multi-Layer 2.2uH 20% 1MHz Ferrite 0.12A 0.52Ohm DCR 0603 T/R
儒卓力:
**LQM18FN 2,2uH 120mA 20% MLT **
Win Source:
FIXED IND 2.2UH 120MA 400 MOHM
额定电流 120 mA
容差 ±20 %
电感 2.2 µH
自谐频率 80 MHz
产品系列 LQM
屏蔽 Yes
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤520 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 400 mΩ
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
重量 0.005 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
