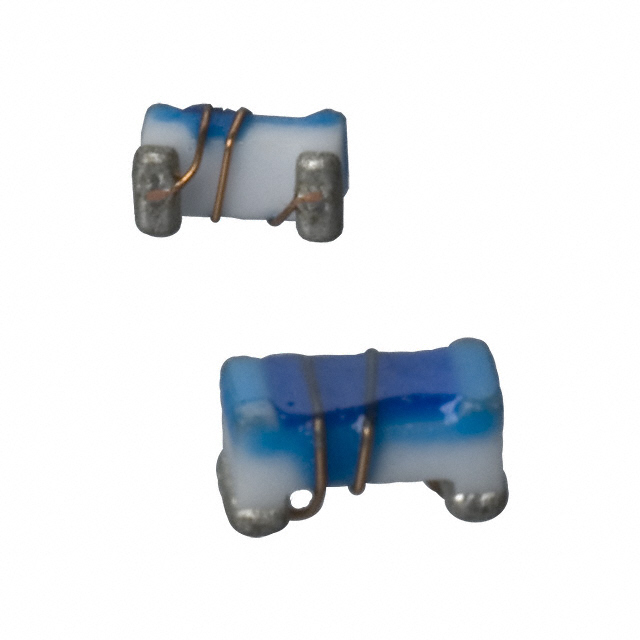

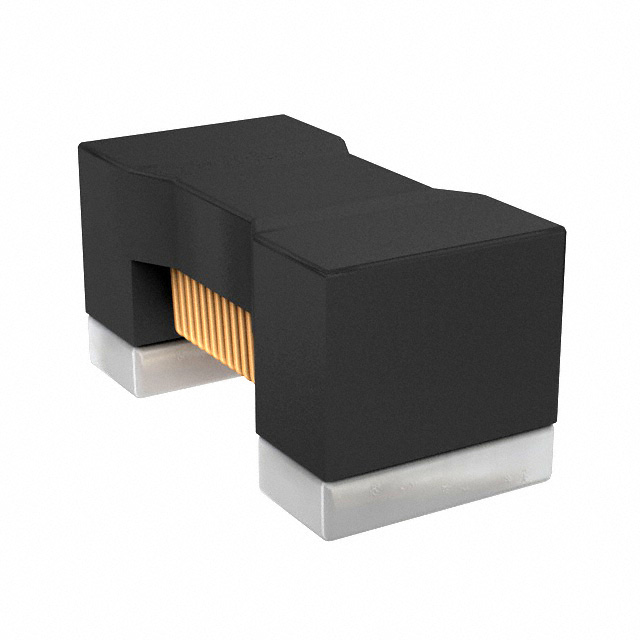

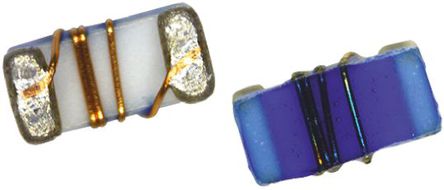

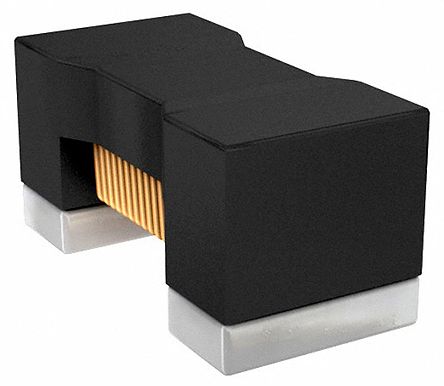

LQW18AN36NJ00D

Murata 0603 LQW18AN 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 带有后缀 "10D" 的型号具有较低直流电阻值。 **应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。 ### SMT 0603 电感器（扼流圈）

固定器

得捷:
FIXED IND 36NH 400MA 260MOHM SMD

欧时:
Murata LQW18A 系列 铁氧体芯材 36 nH 绕线贴片电感器 LQW18AN36NJ00D, ±5%容差, 400mA Idc Q:40

立创商城:
36nH ±5% 260mΩ

艾睿:
An ideal space-saving electronic component is this rf chip LQW18AN36NJ00D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 1.8 mm long, 1 mm tall and 1 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.9G Hz. It has a tolerance of 5%. It has an inductance of 36n H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 260m Ohm. This device utilizes wirewound technology.

安富利:
Ind RF Chip Wirewound 36nH 5% 100MHz 40Q-Factor 400mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 36nH 5% 100MHz 40Q-Factor 400mA 260mOhm DCR 0603 Paper T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.036uH 5% 100MHz 40Q-Factor Non Magnetic 0.4A 0.26Ohm DCR 0603 T/R
