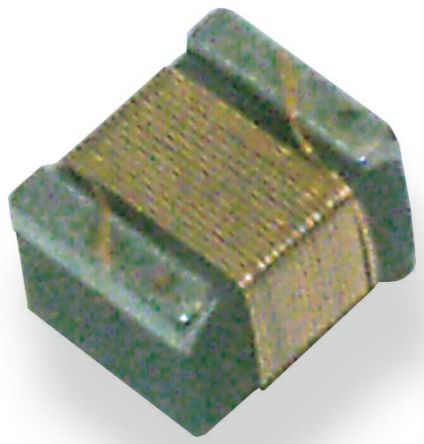

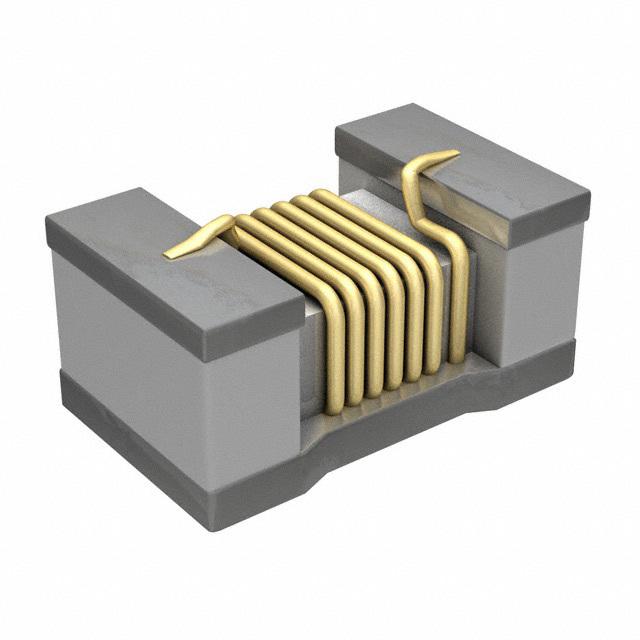

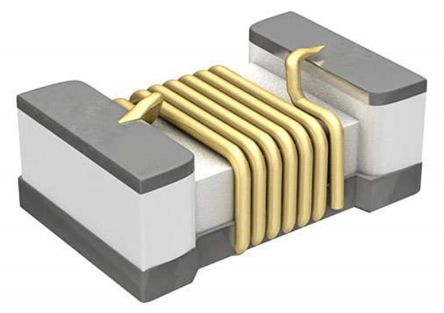

LQW15AN8N2J00D

Murata 0402 LQW15AN_00D 系列线绕电感器 0.0015μH - 0.0095μH高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。 ### 表面安装 0402 电感器（扼流圈）

固定器

得捷:
FIXED IND 8.2NH 540MA 140MOHM SM

立创商城:
8.2nH ±5% 140mΩ

欧时:
Murata LQW15A 系列 铁氧体芯材 8.2 nH 绕线贴片电感器 LQW15AN8N2J00D, ±5%容差, 540mA Idc Q:25

贸泽:
Fixed Inductors 8.2nH 5% 100MHz

艾睿:
This rf chip LQW15AN8N2J00D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. It has an inductance of 8.2n H. This SMD inductor has a maximum DC current of 540m A with a maximum resistance of 140m Ohm. This device utilizes wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 5.5G Hz. It has a tolerance of 5%.

安富利:
Ind RF Chip Wirewound 8.2nH 5% 100MHz 25Q-Factor 540mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 8.2nH 5% 100MHz 25Q-Factor 540mA 140mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0082uH 5% 100MHz 25Q-Factor Non Magnetic 0.54A 0.14Ohm DCR 0402 T/R

儒卓力:
**LQW15A 0,0082µH 540mA 5% WWT **

Win Source:
8.2nH Unshielded Wirewound Inductor 540mA 140 mOhm Max 0402 1005 Metric
