Murata 0402 LQW15AN_00D 系列线绕电感器 0.0015μH - 0.0095μH高质量线圈电感器,设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用:高频率电路,用于无线电信设备,例如蓝牙、GSM、W-LAN。 ### 表面安装 0402 电感器(扼流圈)

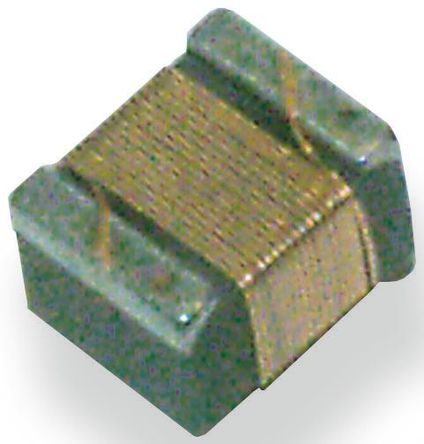

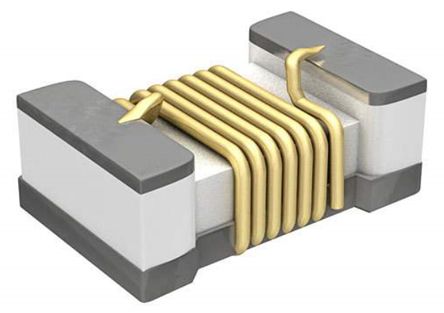

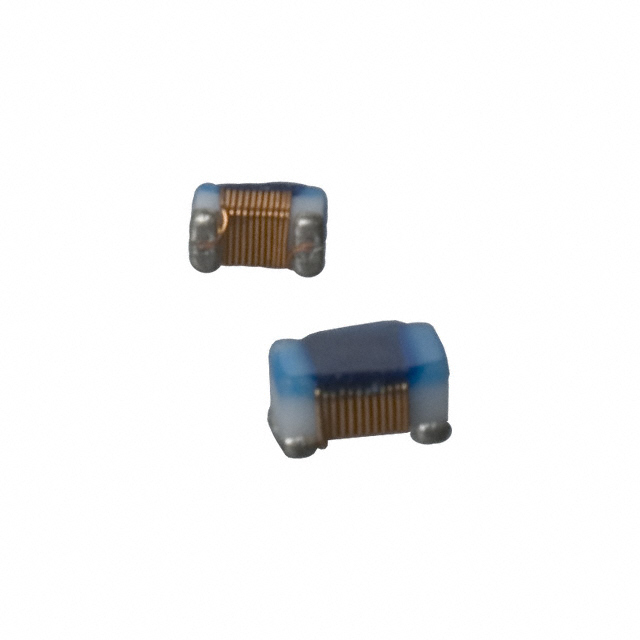

Murata 0402 LQW15AN_00D 系列线绕器 0.0015μH - 0.0095μH
高质量线圈电感器,设计用于 VHF 和 UHF 应用。
高谐振频率。
低容差电感值。
应用:高频率电路,用于无线电信设备,例如蓝牙、GSM、W-LAN。
得捷:
FIXED IND 4.1NH 750MA 70MOHM SMD
立创商城:
4.1nH ±0.5nH 70mΩ
欧时:
Murata LQW15A 系列 铁氧体芯材 4.1 nH 绕线贴片电感器 LQW15AN4N1D00D, ±0.5nH容差, 750mA Idc Q:25
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this rf chip LQW15AN4N1D00D surface mount inductor from Murata is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 10G Hz. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 70m Ohm. It has an inductance of 4.1n H.
Verical:
Inductor RF Chip Unshielded Wirewound 0.0041uH 0.5nH 100MHz 25Q-Factor Non Magnetic 0.75A 0.07Ohm DCR 0402 T/R
额定电流 750 mA
电感 4.1 nH
自谐频率 10 GHz
产品系列 LQW
电感公差 ±0.5 nH
测试频率 100 MHz
电阻DC) ≤70 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 70 mΩ
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
