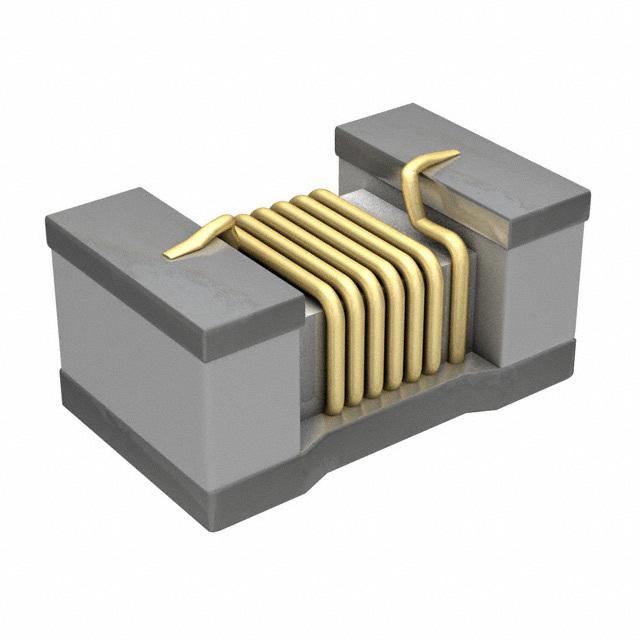

LQW15AN20NJ00D

片式电感器（片状线圈），高频卧式绕线 Chip Inductor Chip Coil for High Frequency Horizontal Wire Wound

无屏蔽 绕线 器 270 毫欧最大 0402（1005 公制）

得捷:
FIXED IND 20NH 370MA 270MOHM SMD

立创商城:
20nH ±5% 270mΩ

贸泽:
Fixed Inductors 20nH 5% 100MHz

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQW15AN20NJ00D surface mount inductor from Murata to save valuable space. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. It has a tolerance of 5%. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 4G Hz. This SMD inductor has a maximum DC current of 370m A with a maximum resistance of 270m Ohm. It has an inductance of 20n H.

安富利:
Ind RF Chip Wirewound 20nH 5% 100MHz 25Q-Factor 370mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 20nH 5% 100MHz 25Q-Factor 370mA 270mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.02uH 5% 100MHz 25Q-Factor Non Magnetic 0.37A 0.27Ohm DCR 0402 T/R

儒卓力:
**LQW15A 0,020µH 370mA 5% WWT **
