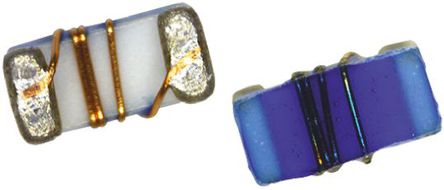

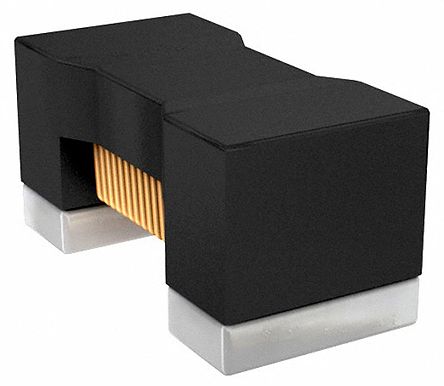

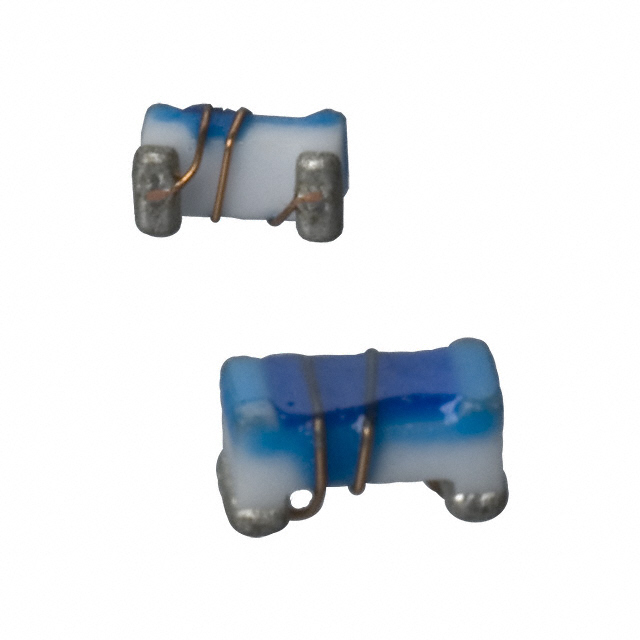

LQW18 A 系列 0603 3.6 nH 850 mA SMD 线绕贴片电感
固定器
得捷:
FIXED IND 3.6NH 850MA 59MOHM SMD
立创商城:
3.6nH ±0.5nH 59mΩ
欧时:
Murata LQW18A 系列 铁氧体芯材 3.6 nH 绕线贴片电感器 LQW18AN3N6D00D, ±0.5nH容差, 850mA Idc Q:25
贸泽:
固定电感器 0603 3.6nH +/-0.5nH DCR 0.059ohm
艾睿:
This rf chip LQW18AN3N6D00D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 1.8 mm long, 1 mm tall and 1 mm deep. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 59m Ohm. It has an inductance of 3.6n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz.
安富利:
Ind RF Chip Wirewound 3.6nH 0.5nH 100MHz 25Q-Factor 850mA 0603 Paper T/R
Chip1Stop:
Inductor RF Chip Wirewound 3.6nH 0.5nH 100MHz 25Q-Factor 850mA 59mOhm DCR 0603 Paper T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.0036uH 0.5nH 100MHz 25Q-Factor Non Magnetic 0.85A 0.059Ohm DCR 0603 T/R
儒卓力:
**LQW18AN 3,6nH 850mA +-0,5nH WWT **
Win Source:
3.6nH Unshielded Wirewound Inductor 850mA 59 mOhm Max 0603 1608 Metric
额定电流 850 mA
电感 3.6 nH
自谐频率 6 GHz
产品系列 LQW
屏蔽 No
电感公差 ±0.5 nH
测试频率 100 MHz
电阻DC) ≤59 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 59 mΩ
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
重量 0.0027 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
