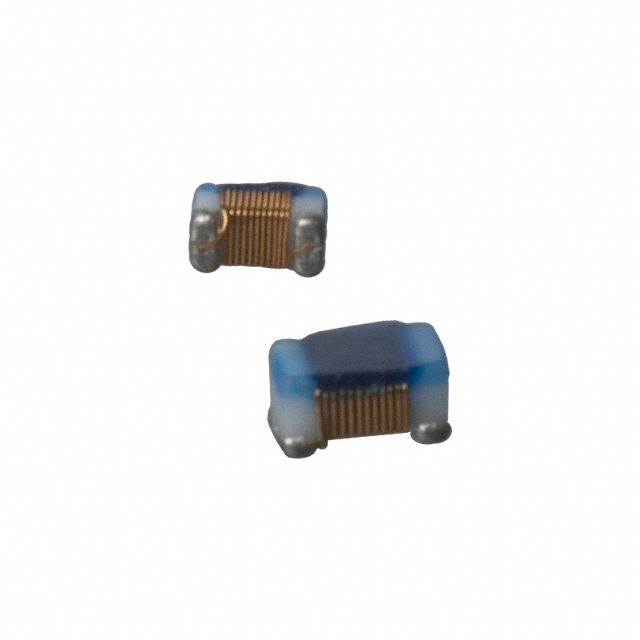

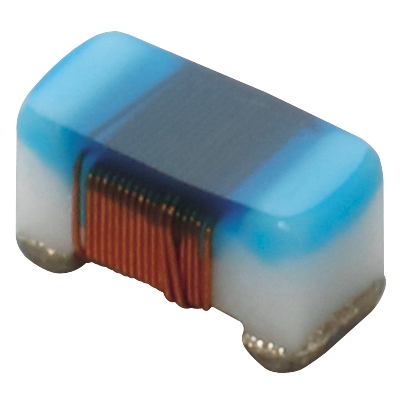

片式电感器(片状线圈),高频卧式绕线 Chip Inductor Chip Coil for High Frequency Horizontal Wire Wound
4.7nH Unshielded Wirewound Inductor 750mA 70mOhm Max 0402 1005 Metric
立创商城:
4.7nH ±0.5nH 70mΩ
得捷:
FIXED IND 4.7NH 750MA 70MOHM SMD
艾睿:
Make any circuit look clean and compact using this rf chip LQW15AN4N7D00D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has an inductance of 4.7n H. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 8G Hz. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 70m Ohm.
安富利:
Ind RF Chip Wirewound 4.7nH 0.5nH 100MHz 25Q-Factor 750mA 0402 Paper T/R
Chip1Stop:
Inductor RF Chip Wirewound 4.7nH 0.5nH 100MHz 25Q-Factor 750mA 70mOhm DCR 0402 Paper T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.0047uH 0.5nH 100MHz 25Q-Factor Non Magnetic 0.75A 0.07Ohm DCR 0402 T/R
Win Source:
4.7nH Unshielded Wirewound Inductor 750mA 70 mOhm Max 0402 1005 Metric
额定电流 750 mA
电感 0.0047 µH
自谐频率 8 GHz
产品系列 LQW
电感公差 ±0.5 nH
测试频率 100 MHz
电阻DC) ≤70 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.07 Ω
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1.1 mm
宽度 0.7 mm
高度 0.6 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
