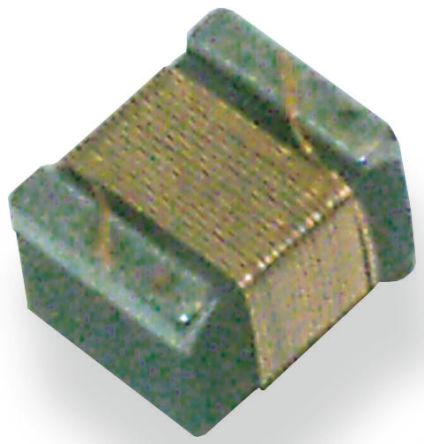

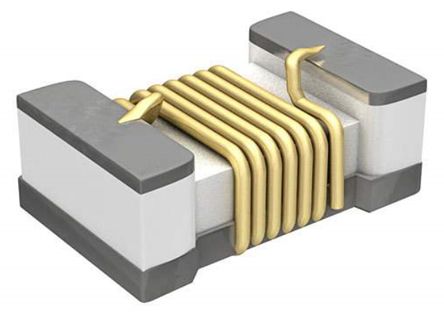

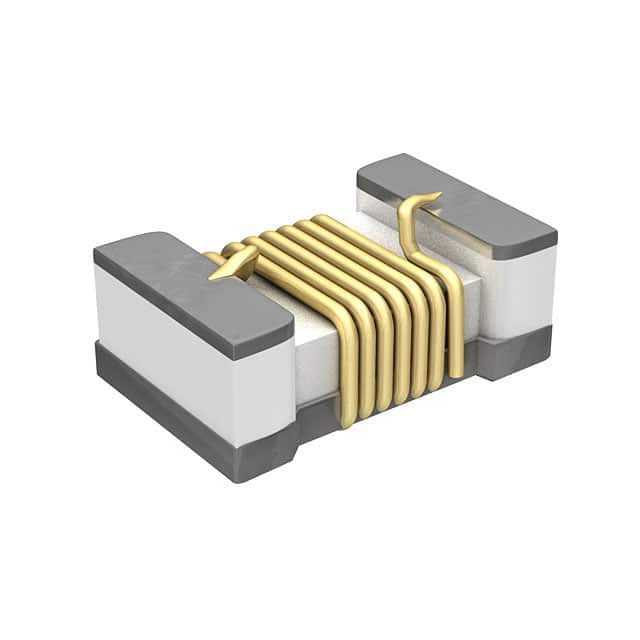

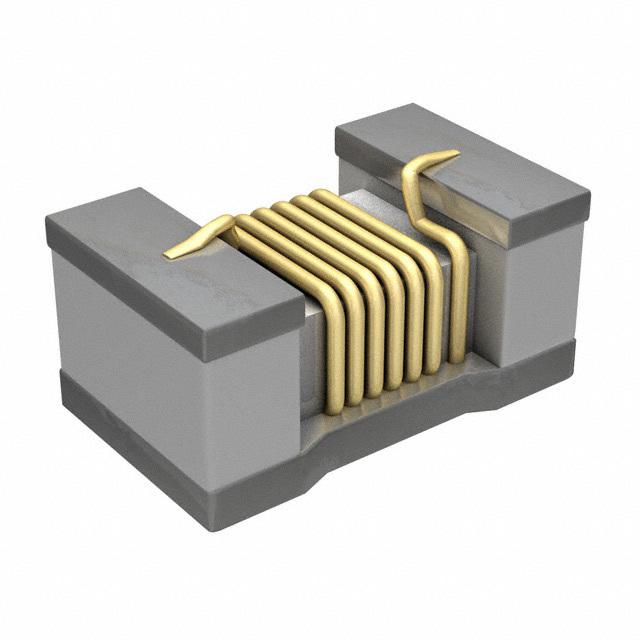

LQW15AN2N2D10D

Murata 0402 LQW15A_10 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 比_00 系列更低的直流电阻值。 应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。 ### 表面安装 0402 电感器（扼流圈）

Murata 0402 LQW15A_10 系列线绕器

高质量线圈电感器，设计用于 VHF 和 UHF 应用。

高谐振频率。

低容差电感值。

比_00 系列更低的直流电阻值。

应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。

得捷:
FIXED IND 2.2NH 1A 27 MOHM SMD

欧时:
Murata LQW15A_10 系列 铁氧体芯材 2.2 nH 绕线贴片电感器 LQW15AN2N2D10D, ±0.5nH容差, 1A Idc Q:25

立创商城:
2.2nH ±0.5nH 27mΩ

艾睿:
This rf chip LQW15AN2N2D10D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 27m Ohm. It has an inductance of 2.2n H. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. This device utilizes wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 14G Hz.

安富利:
Ind RF Chip Wirewound 2.2nH 0.5nH 100MHz 25Q-Factor 1A 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 2.2nH 0.5nH 100MHz 25Q-Factor 1A 27mOhm DCR 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0022uH 0.5nH 100MHz 25Q-Factor Non Magnetic 1A 0.027Ohm DCR 0402 T/R

Win Source:
FIXED IND 2.2NH 1A 27 MOHM SMD / 2.2 nH Unshielded Wirewound Inductor 1 A 27mOhm Max 0402 1005 Metric
