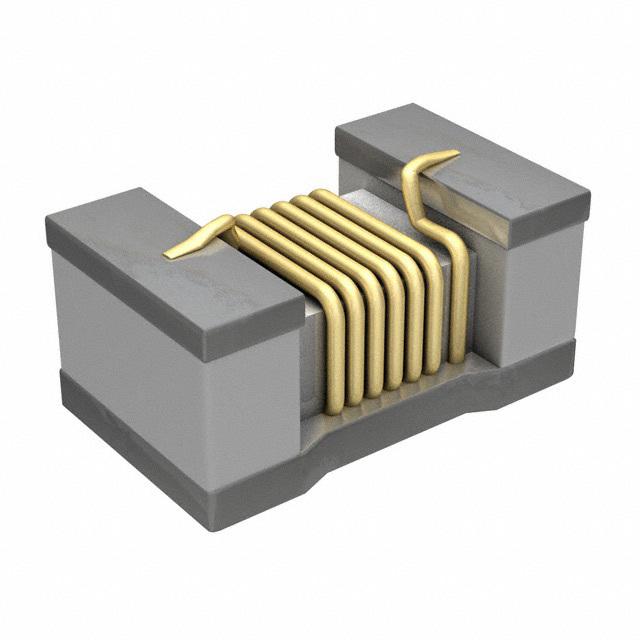

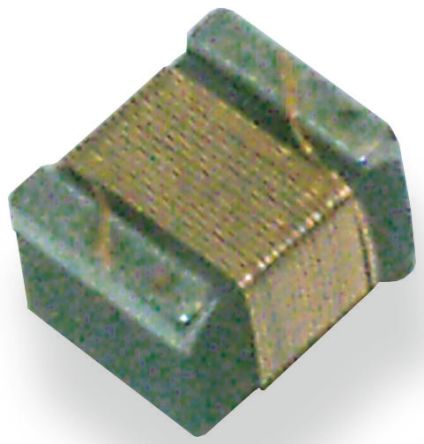

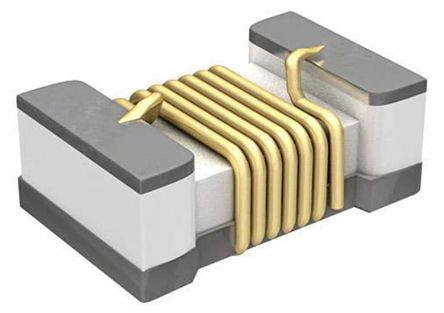

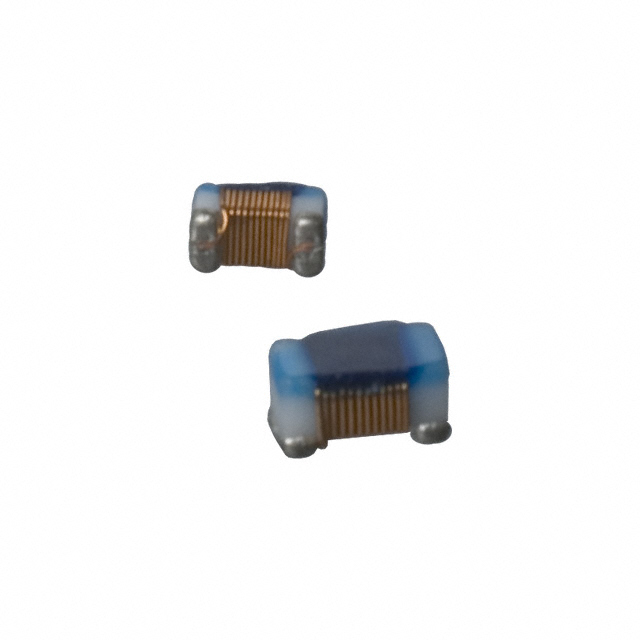

Murata 0402 LQW15AN_00D 系列线绕电感器 0.01μH - 0.047μH高质量线圈电感器,设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用:高频率电路,用于无线电信设备,例如蓝牙、GSM、W-LAN。 ### 表面安装 0402 电感器(扼流圈)
值Inductance| 47nH \---|--- 误差Tolerance| ±5% 额定电流Current Rating| 210mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 25 @ 200MHz 自振谐频率SRFFrequency - Self Resonant| 2.9GHz DC电阻DCRDC Resistance DCR| 1.08Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| LQW15A_00 Series The LQW15A series consists of air core chip coil using a miniature alumina core.The tight inductance tolerance +-0.2nH, +-3% is available due to Murata"s original wound technology.The LQW15A series has high Q value in high frequency range and high self resonant frequency. It is suitable for high frequency circuits which are used in telecommunications equipment. Features 1. Horizontal wound structure enables tight inductance tolerance +-0.2nH, +-3% And tolerance of +-0.1nH, +-2% is available. 2. Wide variation in inductance value. 3. The subminiature dimensions 1.0x0.5mm allow high density mounting. 4. The high self resonant frequency realizes high Q value and stable inductance at high frequency. 5. Low DC resistance design is ideal for low loss, high output and low power consumption. 6. Resin-coated surface enables excellent mounting. 描述与应用| LQW15A_00系列 LQW15A系列在高频范围内具有高Q值高自谐振频率。适用于电信设备中所使用的高频电路。 特点 1。水平缠绕结构使电感容差小。 2。允许高密度安装的超小型尺寸(1.0x0.5mm)。 4。高自谐振频率,实现高Q值和高频稳定电感。 5。低直流电阻设计是低损耗,高输出和低功耗的理想选择。
额定电流 210 mA
容差 ±5 %
电感 47 nH
自谐频率 2.9 GHz
产品系列 LQW
屏蔽 No
电感公差 ±5 %
测试频率 100 MHz
电阻DC) ≤1.08 Ω
额定电流DC 210 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 1.08 Ω
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
重量 0.0008 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
