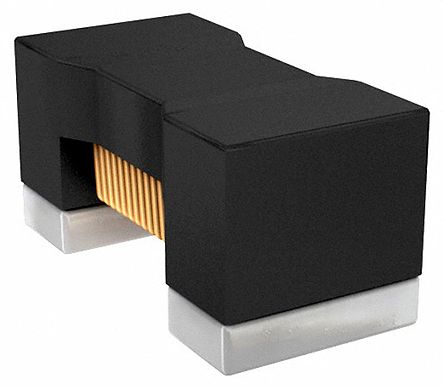

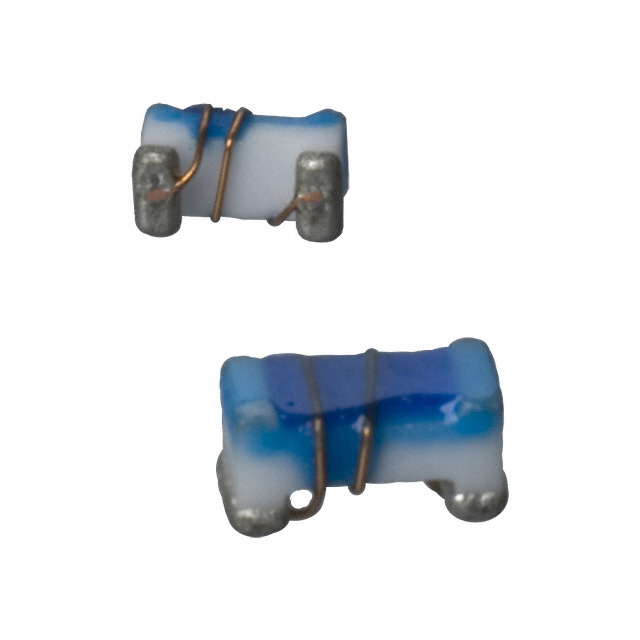

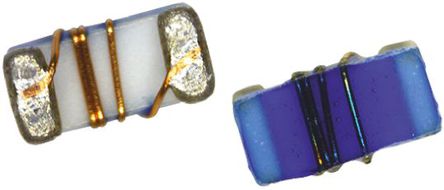

LQW18AN16NJ00D

Murata 0603 LQW18AN 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 带有后缀 "10D" 的型号具有较低直流电阻值。 **应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。 ### SMT 0603 电感器（扼流圈）

Murata 0603 LQW18AN 系列线绕器

高质量线圈电感器，设计用于 VHF 和 UHF 应用。

高谐振频率。

低容差电感值。

带有后缀 "10D" 的型号具有较低直流电阻值。

**应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。

得捷:
FIXED IND 16NH 550MA 160MOHM SMD

立创商城:
16nH ±5% 160mΩ

欧时:
Murata LQW18A 系列 铁氧体芯材 16 nH 绕线贴片电感器 LQW18AN16NJ00D, ±5%容差, 550mA Idc Q:40

贸泽:
Fixed Inductors 0603 16nH +/-5% DCR 0.16ohm

艾睿:
This rf chip LQW18AN16NJ00D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 16n H. This product is 1.8 mm long, 1 mm tall and 1 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 5.5G Hz. This SMD inductor has a maximum DC current of 550m A with a maximum resistance of 160m Ohm. This device utilizes wirewound technology. It has a tolerance of 5%.

安富利:
Ind RF Chip Wirewound 16nH 5% 100MHz 40Q-Factor 550mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 16nH 5% 100MHz 40Q-Factor 550mA 160mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.016uH 5% 100MHz 40Q-Factor Non Magnetic 0.55A 0.16Ohm DCR 0603 T/R

Win Source:
FIXED IND 16NH 550MA 160 MOHM
