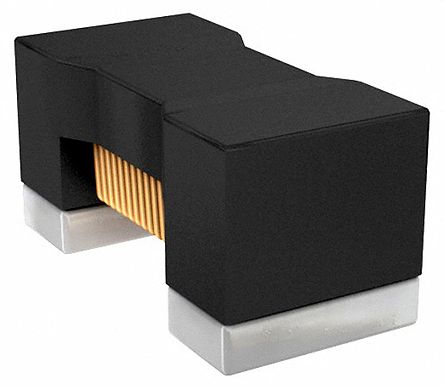

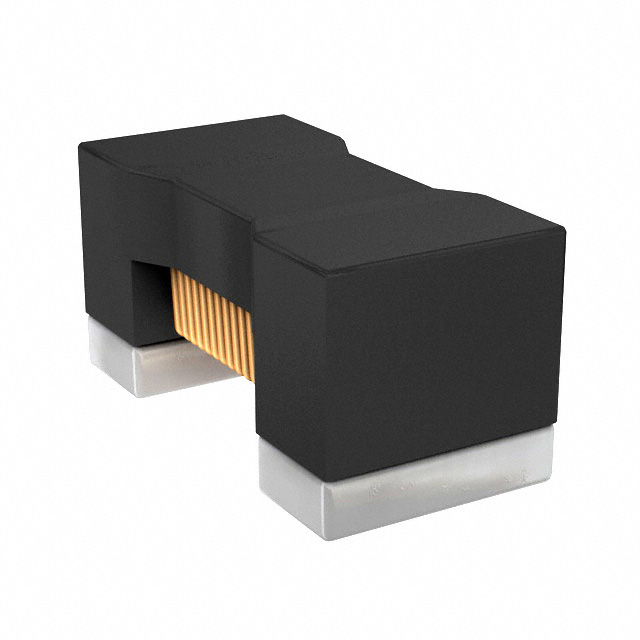

LQW18ANR20G00D

LQW 系列 0603 200 nH ±2% 120 mA 2.4 Ω DCR 表面贴装 非屏蔽 线绕电感

固定器

得捷:
FIXED IND 200NH 120MA 2.4OHM SMD

欧时:
Murata LQW18A 系列 铁氧体芯材 200 nH 绕线贴片电感器 LQW18ANR20G00D, ±2%容差, 120mA Idc Q:25

立创商城:
200nH ±2% 2.4Ω

贸泽:
固定电感器 0603 200nH +/-2% DCR 2.40ohm

艾睿:
This rf chip LQW18ANR20G00D surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 2%. It has an inductance of 200n H. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 120m A with a maximum resistance of 2.4 Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.25G Hz. This product is 1.8 mm long, 1 mm tall and 1 mm deep.

安富利:
Ind RF Chip Wirewound 200nH 2% 100MHz 25Q-Factor 120mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 200nH 2% 100MHz 25Q-Factor 120mA 2.4Ohm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.2uH 2% 100MHz 25Q-Factor Non Magnetic 0.12A 2.4Ohm DCR 0603 T/R

Win Source:
FIXED IND 200NH 120MA 2.4 OHM
