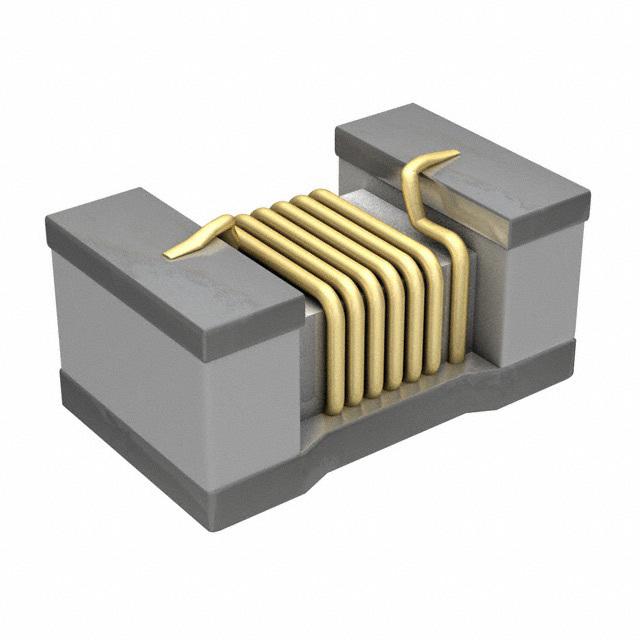

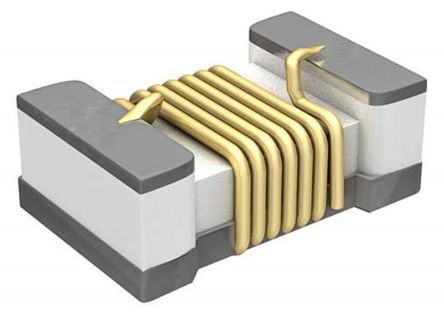

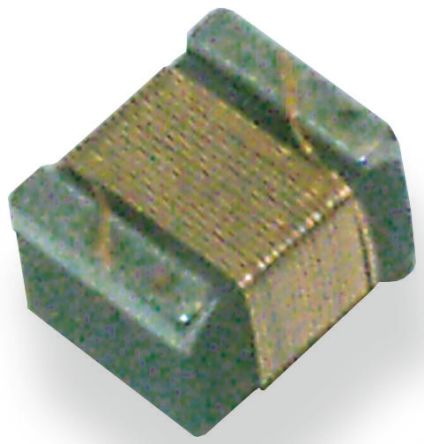

LQW 系列 0402 62 nH 145 mA SMD 线绕电感
Murata 0402 LQW15AN_00D 系列线绕器 0.051μH - 0.12μH
高质量线圈电感器,设计用于 VHF 和 UHF 应用。
高谐振频率。
低容差电感值。
应用:高频率电路,用于无线电信设备,例如蓝牙、GSM、W-LAN。
得捷:
FIXED IND 62NH 145MA 1.82OHM SMD
欧时:
Murata LQW15A 系列 铁氧体芯材 62 nH 绕线贴片电感器 LQW15AN62NH00D, ±3%容差, 145mA Idc Q:20
贸泽:
Fixed Inductors 62nH 3% 100MHz
艾睿:
This rf chip LQW15AN62NH00D surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 145m A with a maximum resistance of 1.82 Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.6G Hz. It has a tolerance of 3%. It has an inductance of 62n H. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep.
安富利:
Ind RF Chip Wirewound 62nH 3% 100MHz 20Q-Factor 145mA 0402 Paper T/R
Chip1Stop:
Inductor RF Chip Unshielded Wirewound 62nH 3% 100MHz 20Q-Factor Ceramic 145mA 1.82Ohm DCR 0402 T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.062uH 3% 100MHz 20Q-Factor Non Magnetic 0.145A 1.82Ohm DCR 0402 T/R
额定电流 145 mA
容差 ±3 %
电感 62 nH
自谐频率 2.6 GHz
产品系列 LQW
电感公差 ±3 %
测试频率 100 MHz
电阻DC) 1.82 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 1.82 Ω
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.6 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
